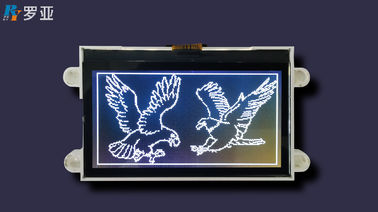

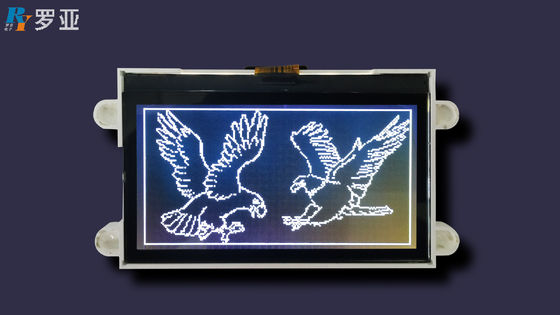

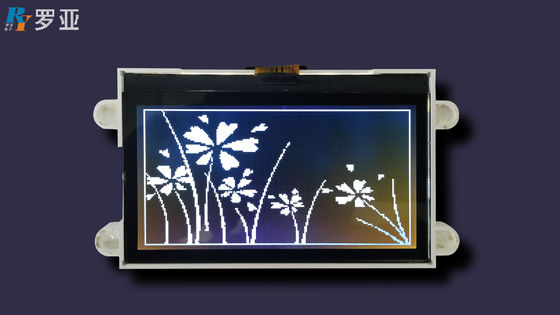

High Contrast Ratio Lcd Panel Module FSTN Custom Shaped Lcd Screen OEM ODM
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG7003A-NFTSNW |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 180pcs/CTN 9.5Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500k/Month |
|
Detail Information |
|||
| Model No.: | RYG7003A-NFTSNW | Product Name: | High Contrast Ratio / Super Wide Viewing Angle LCD Module FSTN Custom TFT LCD Panel |
|---|---|---|---|
| LCD Display Type: | FSTN | Polarzier Model: | Transflective, Positive |
| Resolution: | 320x240 | Viewing Angle: | 6 O' Clock |
| Interface: | SPI, Parallel | Control IC: | NT7701 & NT7709 |
| Logic Supply Voltage: | 3V | Operating Temp: | -30°C-70°C |
| Storage Temp: | -30°C-80°C | Backlight Type: | White 3V 60mA |
| Outline Dimension: | 113x72mm | Customized: | Available, OEM ODM Welcome |
| Application: | Industrial Instruments, Refrigerator, Clusters, Car Radios, Air Conditioner, Coffee Machine, Security, Glucometer, Dish-washing Machine, POS , Etc . | ||
| Highlight: | Lcd Touch Screen Panel,Lcd Panel Module |
||
Product Description
High Contrast Ratio/Super Wide Viewing Angle LCD module FSTN Custom TFT LCD Panel
PRODUCT DESCRIPTION

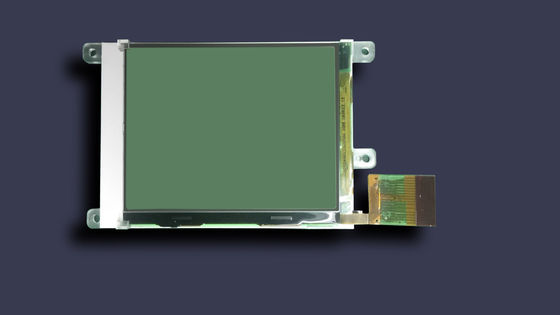

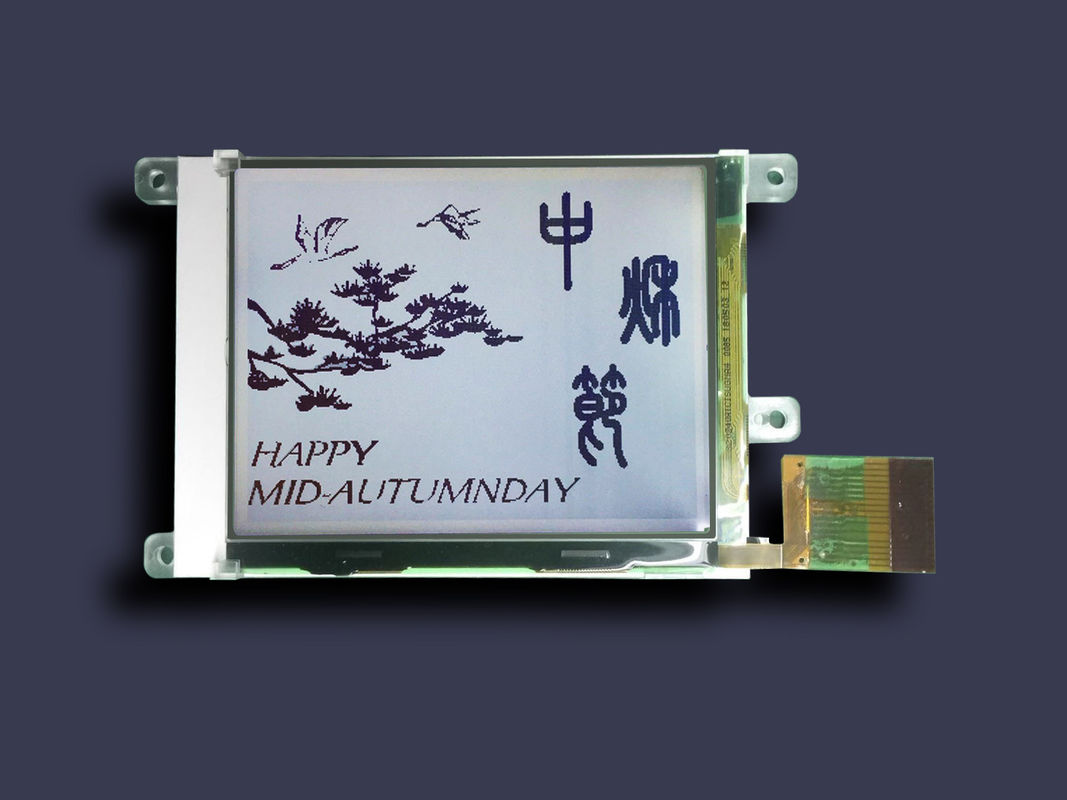

RYG7003A-NFTSNW is cob display 320x240 graphic lcd module, NT7701 & NT7709 controller, SPI, Parallel interface, black on white, FSTN LCD, FPC connector.
| Item | Description |
| Product Name | 320x240dots Graphic LCD Module |
| Model No. | RYP320240B |
| Display Type | FSTN-Positive, STN-Gray |
| Dot Format | 320x240dots |
| Outline (mm) | 160*109 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| Backlight | White or Amber LED backlight |
| Driver IC | NT7701 & NT7709 |
| Power supply | 3V |
| Interface | Parallel,SPI |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
PRODUCT DETAILS
1. Typical Applications
Industrial Instruments, Refrigerator, Clusters, Car Radios, Air conditioner, Coffee machine, Security, Glucometer, Dish-washing machine, Pos, etc.
2. Features
High Reliability
Super Black Background
Super Wide Viewing Angle
Transmissive Negative Model
Super High Contrast Ratio(up to 1000:1)
Wide Operation & Storage Temperature range
(Top:-30~+85℃； Tst:-40~+90℃)
Small color change vs . Temperature
Suitable For All Kinds Of Backlight (white/red/blue etc.)
