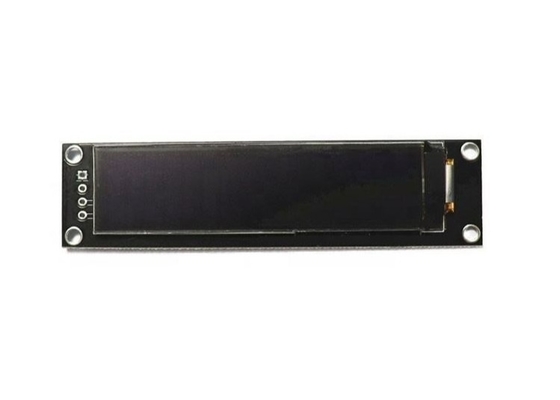

2.26" OLED Display Module With 16x2 Resolution 2.26 Inch 1602 Monochrome OLED
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Diaplay |
| Certification: | ISO Rohs |
| Model Number: | RYO1602C-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba |
| Delivery Time: | 20-28 work days |
| Payment Terms: | Western Union, L/C, T/T in advance |
| Supply Ability: | 30K/M |
|
Detail Information |
|||
| Display Size: | 2.26 Inch | Resolution: | 16x2 Character |
|---|---|---|---|
| Outline Dimension: | 80x20.2x5.3mm | Active Area: | 56.22x11.52mm |
| Driver IC: | KS0066 | Pins: | 4P |
| Highlight: | 1602 OLED Display Module,Monochrome OLED Display Module,2.26 Inch oled screen module |
||
Product Description

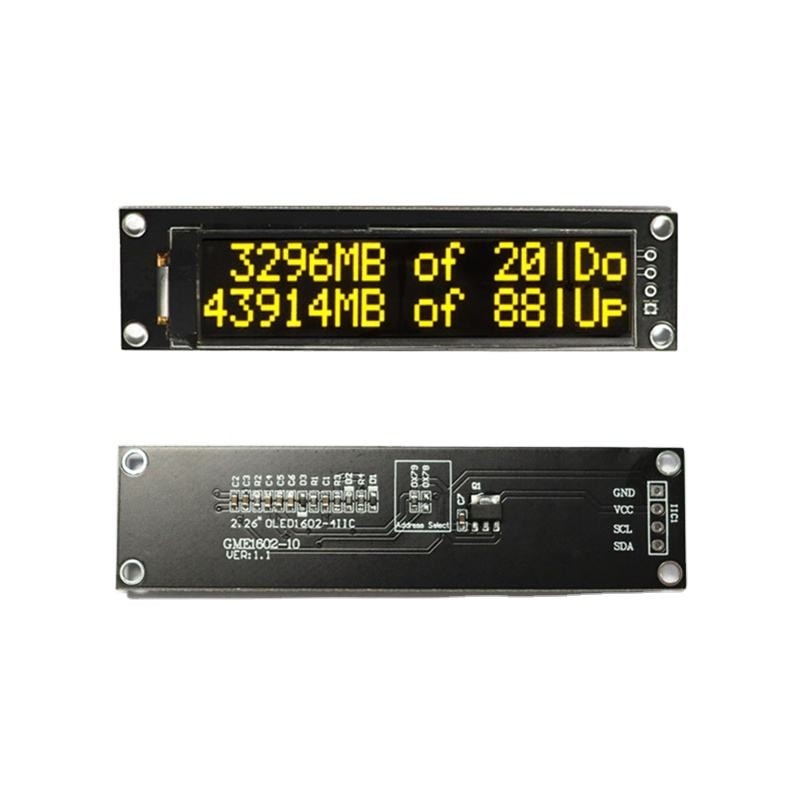

2.26" Oled Display Module With 16x2 Resolution 2.26 Inch 1602 Monochrome OLED
Specification Of 16x2 Character OLED Display
| Diagonal Screen Size | 2.26inch |
| Color | Mono(Yellow/ White/ Blue/ Green) |
| Model number | RYO1602C-M |
| Resolutions | 16x2 character |
| Outline dimension | 80x20.2x5.3mm |
| Active area | 56.22x11.52mm |
| Pixel pitch | 0.60x0.70 mm |
| Pixel size | 0.57x0.6mm |
| Driver IC | KS0066 |
| Voltage | 3-5V |
| Interface | IIC |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~90℃ |
| Assemble | Soldering |
| Pins | 4P |
2.26 Inch 16x2 Chracter OLED Detailed Drawing
Similar OLED Screen
OLED Display Application
Our OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
16x2 Character Monochrome OLED Module Service Advantages
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2% - 0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
16x2 Monochrome OLED FAQ:
1. What is the 16x2 character OLED module MOQ?
A: No MOQ for samples, different MOQ requirements for bulk order.
2. What about the delivery time?
A: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3- 4 weeks for samples, 4 weeks for mass production after sample confirmation.
3. Is there any warranty for your products?
A: Yes,we offer 12- month warranty for unartificial defect.
4. What is your shipping method?
A: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.
5. What is your payment method?
A: We support make payment via TT/ West Union/ Paypal,50%-100% deposit in advance and balance before shipping as order amount.
6. Do you offer customization service?
A: Yes, welcome OEM& ODM, please send us your requirements for assessment.
