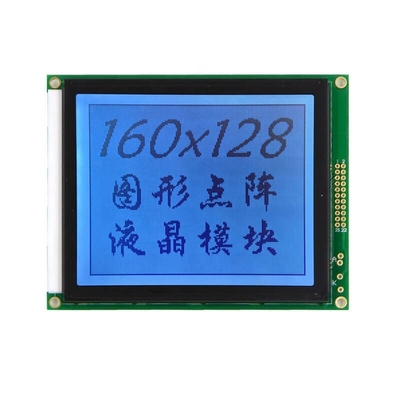

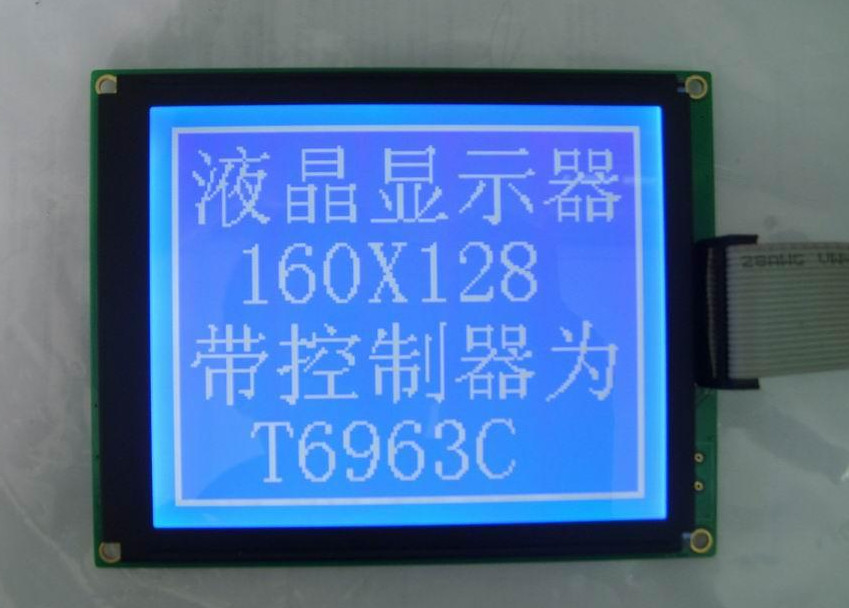

100% Replace WG160128B 160*128 Graphic LCD Module With T6963C Controller
Quick Detail of 160*128 Graphic LCD Module
RYP160128A is a monochrome graphic LCD 160x128 dot matrix display module which is having the module dimension of 129x102 mm and AA size of 95.96x75.76 mm. This RYP160128A model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply or 3.3V negative voltage optional. This lcd display 160x128 module is available for graphic mode or Character Generator mode (Character font) optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Specification of Monochrome 160*128 LCD display
| Item | Description |
| Product Name | 160x128 LCD Module |
| Model No. | RYP160128A |
| Dot Format | 160x128 |
| Outline (mm) | 129.0*102.0*13.0mm |
| Active Area(mm) | 38.44(H) x 66.9 (V) |
| Display Mode | STN Blue |
| Duty | 1/128 |
| Driver IC | T6963C |
| Viewing Direction | 6:00 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Contour Drawing of 160*128 Dot Matrix LCD Module

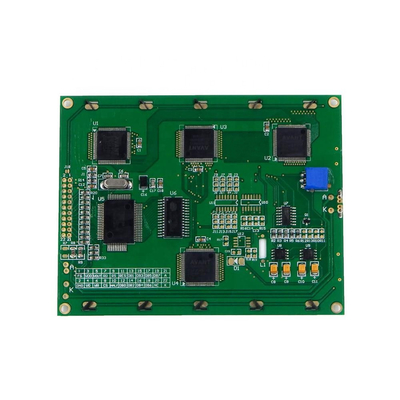

Features of 160*128 Monochrome LCD Module
RYP160128A is a graphic LCD display 160x128, the module dimension 129×102 mm. RYP160128A utilizes IC RA6963 supporting 8080 interface. The module has a PCB with screw holes and peripheral circuit for easy mounting and usage. The driver voltage is 5V, there is built negative voltage. The driving method is 1/128. The pin of RYP160128AGraphic LCD 160x128 module is from pin header of 2.54 mm pitch (please note the standard package doesn’t include pin header). There are 2 viewing angle options to choose from, one is 12 o’clock and the other is 6 o’clock. We offer a variety of combinations of LED backlight and LCD mode. Please contact us for your request.
