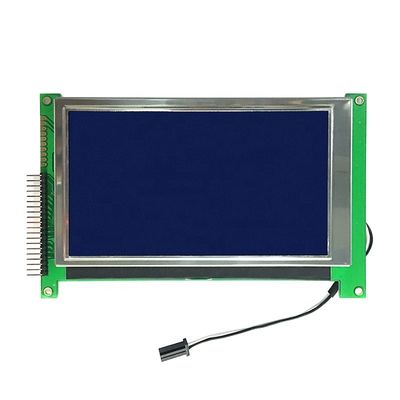

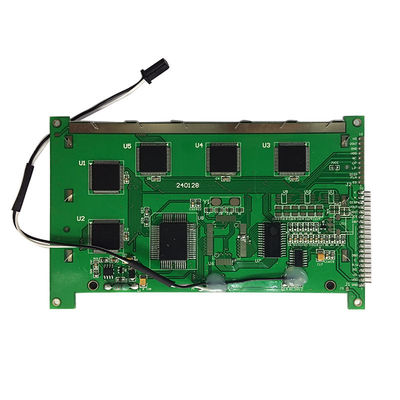

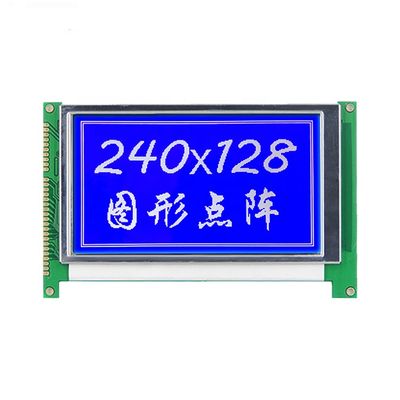

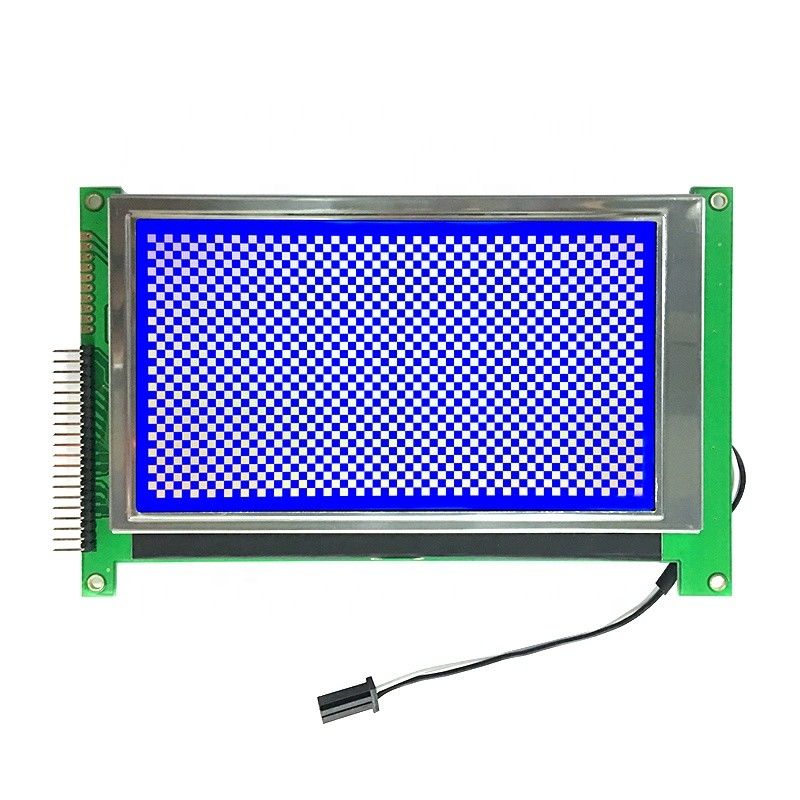

5.5 Inch 240X128 STN Blue Monochrome Graphic Dot Matrix LCD Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS |
| Model Number: | RYP240128G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20K/Month |
|
Detail Information |
|||
| Product Name: | 5.5'' 240*128 Graphic LCD Module | Display Type: | STN Blue, Transmissive, Negative |
|---|---|---|---|
| Resolution: | 240x128 | Type: | Graphic DOT Matrix LCD Module |
| IC: | TC6963C/LC7981 | Driver Method: | 1/128duty |
| Viewing Direction: | 6 O'clck | Backlight: | LED White |
| Operating Temp.: | 0°C~+50°C | Stroage Temp.: | -20°C~+60°C |
| Highlight: | Monochrome Graphic LCD Module,5.5Inch Graphic LCD Module,LC7981 Graphic LCD Module |
||
Product Description
5.5 Inch 240X128 STN Blue Monochrome Graphic Dot Mtrix LCD Module
Quick Detail of 240*128 Dot Matrix LCD Module
A Liquid Crystal Display (LCD) screen is an electronic display module and has a wide range of applications. A 240x128 LCD display is a very basic module and is very commonly used in various devices and circuits. A 240x128 LCD means it can display 240 characters per line and there are 128 such lines. In this LCD each character is displayed in a 5×8 pixel matrix. The 240x128 intelligent alphanumeric dot matrix display is capable of displaying 256 different characters and symbols.
Specification of 5.5inch 240*128 Graphic LCD module
|
Resolution
|
240*128
|
|
Viewing Angle
|
6 O'clock
|
|
External dimensions
|
159.4*101.2*12.1mm
|
|
Visual area
|
123.8*69.8mm
|
|
Active Area
|
120.0*64.0mm
|
|
Controller IC
|
LC7981/T6963C
|
|
Display mode
|
STN/Negative/Transmissive/Blue
|
|
Backlight Type
|
LED White
|
|
Operating Temp
|
0°C~+50°C
|
|
Storage Temp
|
-20°C~+60°C
|
|
Number of pins
|
20 pin
|
Package Of Graphic Dot matrix LCD Module
Choose the right package according to the size of the product and carry out multiple protections to ensure that the product avoids damage during transportation.
Application Of Graphic LCD Display
Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
A graphical LCD can be use in various electronic devices where we need to display some character or image. Basically, these types of medical, hand held, safety or performance use in industrial equipment. In addition, graphical LCD is use in various electronic DIY projects. It is easy to interface it with micro-controllers, Arduino and other controllers.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How long is the product warranty and service?
Q: Is the product in stock? How long production cycle?
Q: What if I have a defective product under warranty?
A: We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product."Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos.
Q: How do I make a warranty claim?
A: For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.
