Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5.1inch 240x128 LCD Module | Display Type: | STN Blue, Transmissive, Negative/FSTN Transflective, Positive |
|---|---|---|---|
| Resolution: | 240x128 | Type: | Graphic COB |
| Driver Method: | 1/128duty | Viewing Direction: | 6 O'clck |
| IC: | T6963C | Backlight: | LED White |
| Operating Temp.: | -20℃~+70℃ | Stroage Temp.: | -30℃~+80℃ |
| High Light: | STN Dot Matrix Graphic LCD Module,STN Graphic LCD Module 5.1inch,Graphic LCD Module 240x128 |
||
5.1inch STN Blue Graphic Monochrome LCD Module 240x128 Dot Matrix Display
Quick Detail of 240*128 Dot Matrix LCD Module
1. Resolution: 240*128
2. Size: 5.1inch
3. Display mode: STN/Negative/ Transmissive/ Blue
4. Driving: Duty: 1/ 128, Bias:1/16, VLCD:17.5V, VDD:5.0V
5. Viewing angle: 6 0' clock
6. Operating temp:- 20ºC~+70ºC
7. Storage temp.: - 30°C~+80ºC
8. Control IC: T6963C (or compatible)
9. Backlight: Edge White
Specification of 5.1inch 240*128 Graphic LCD display
| Item | Description |
| Product Name | 240x128 LCD Module |
| Model No. | RYP240128A |
| Dot Format | 240x128 |
| Outline (mm) | 144.0*104.0*14.3(MAX)mm |
| Active Area(mm) | 107.98×57.58mm |
| Display Mode | STN Blue |
| Duty | 1/128, 1/16 bias |
| Driver IC | T6963C |
| Viewing Direction | 6:00 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Contour Drawing of 240*128 Graphic LCD Module

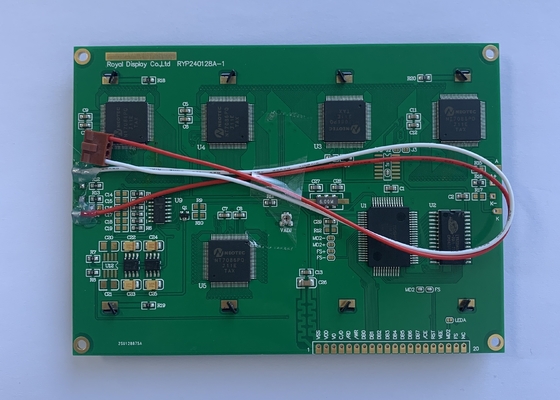

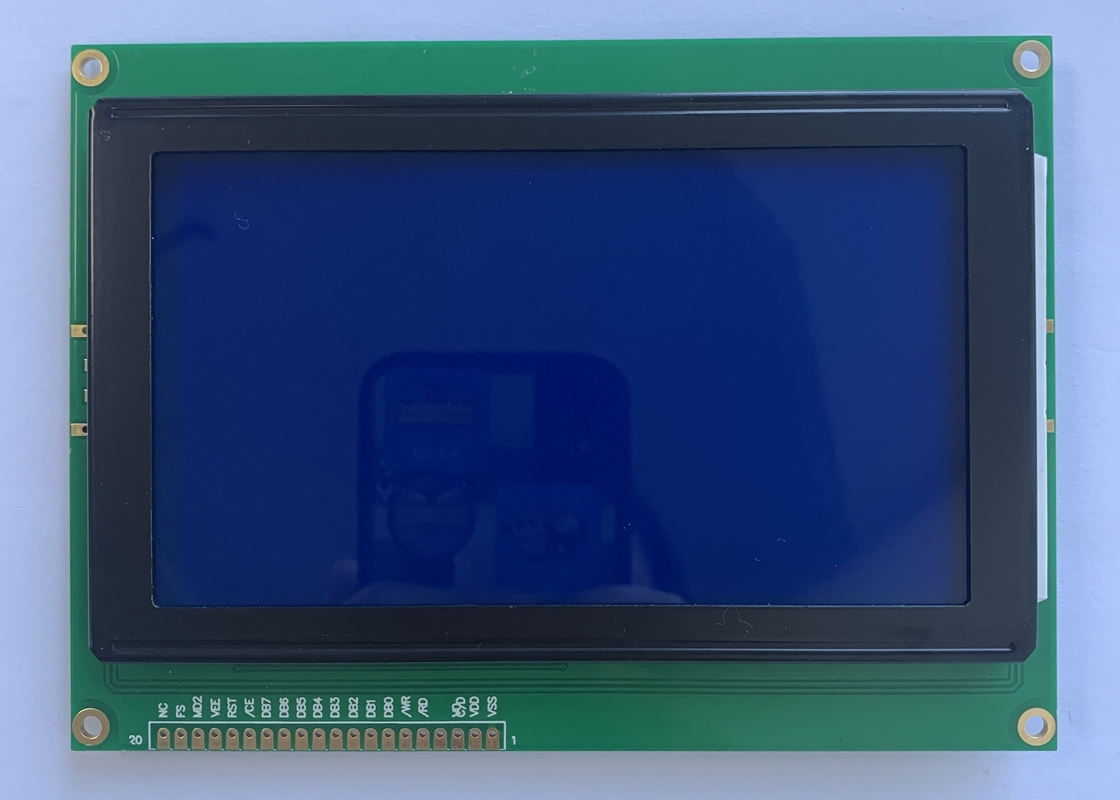

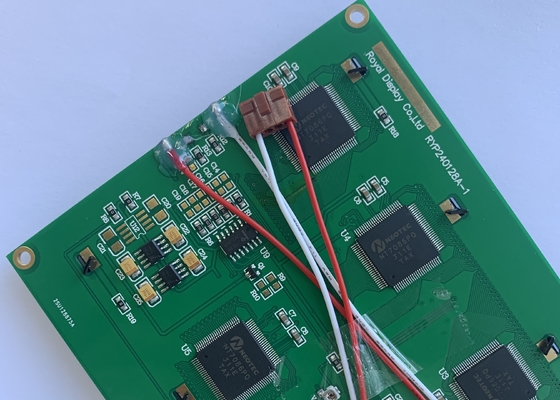

RYP240128A is a dot matrix 240x128 monochrome Graphic LCD display module with LED backlight. The module dimension is 144.0×104.0 mm with active area size 107.98×57.58 mm. This module using RA6963 IC supports 8080 parallel interface.
Logic supply voltage of this 240x128 Graphic LCD display module ranges from 3V-5.5V, it also features built-in negative voltage. Module can be operated at temperature within -20 to +70°C; storage temperature covers from-30 to +80℃. Feel free to send us inquiry if you’d like to know more information of this 240x128 LCD display.
FAQ of Graphic LCD Module
1.Long Term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. Royal Display gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we’ll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.
2. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment.If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.
3. What if I have a defective product under warranty?
We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product."Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos.
4. How do I make a warranty claim?
For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.
