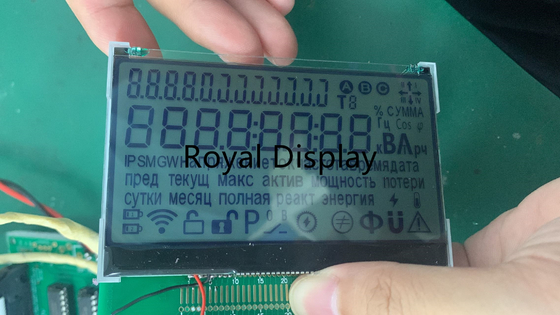

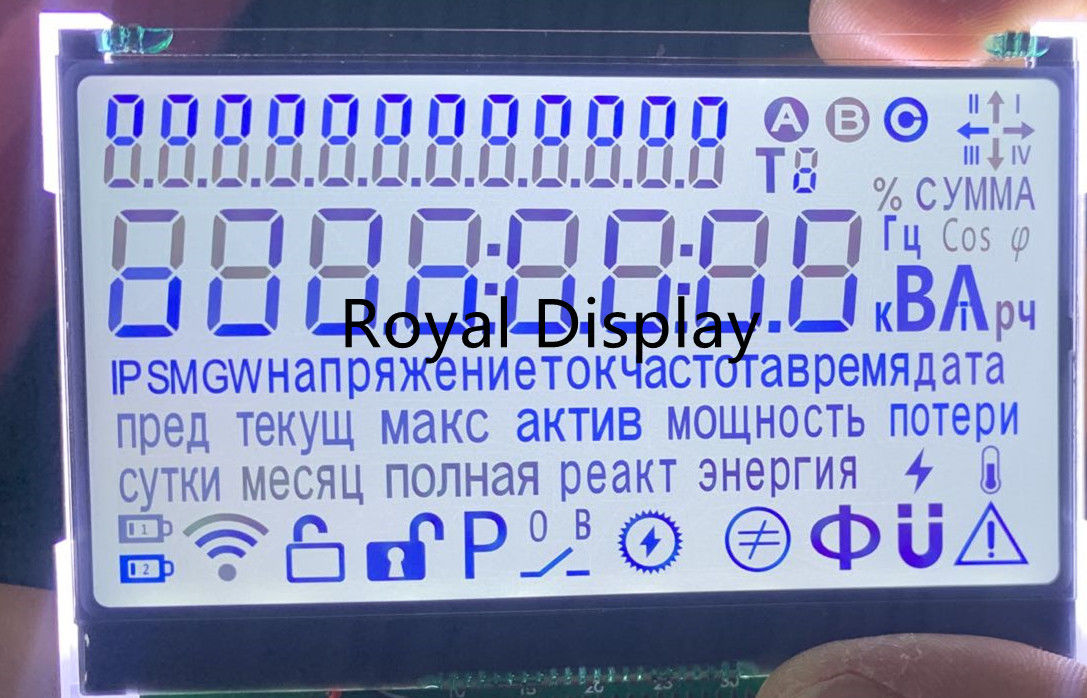

ST7033 IC 7 Sgement Lcd Display TN STN FSTN Custom LCD Panel For Electronic Meter
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | RoHS, REACH, ISO |
| Model Number: | RYG7050 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T, D/A, D/P |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Display Type: | FSTN/ Postivie | IC: | ST7033 |
|---|---|---|---|
| Polarizer: | Transflective | Viewing Direction: | 6 O'clock |
| Drive Method: | 1/ 4 Duty 1/ 3 Bias | Connector: | COG+ PIN |
| Operating Voltage: | 3.3v | Led Backlight: | White 3.0v 120mA |
| Highlight: | ST7033 IC 7 sgement Lcd Display,FSTN 7 sgement Lcd Display,Transflective Custom LCD Panel |
||
Product Description
Customized 7sgement Lcd Display Tn Stn Fstn Cutom Design Lcd Display For Electronic Meter
According to customers' special requests,We can support with ODM or OEM mode and Design LCD ,PCB or backlight.
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Please refer to the table below for more information or contact with us freely .
| Glass General Thickness | 0.4mm,0.55mm,0.7mm,1.1mm for option |
| Display Type | TN,HTN,STN,FSTN,VA for option |
| Display Mode | Positive,negative |
| Driving Voltage | 2.8v,3.0v,3.3v,5.0v |
| Viewing Direction | 6 o′clock,12 o′clock,9 o′clock |
| Polarizer Type | reflective,transflective,transmissive |
| Operating Temperature | -30℃~80℃ (max) |
| Backlight | led backlight |
APPLICATION
FAQ:
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
1) Product information-Quantity,part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
