| Product Name: | Graphic LCD 128X64dots LCD Display Module | Model No.: | LCM12864L |
|---|---|---|---|
| Display Format: | 128x64dots | Viewing Angle: | 6 O' Clock |
| LED Backlight: | Side White | Controller IC: | KS0107 |
| LCD Type: | FSTN-Negative | Outline L X W X H: | 78.0mm X 70.0mm X 14.3mm |
| Viewing Area L X W: | 62.0mm X 44.0mm | Active Area L X W: | 56.28mm X 38.36mm |
| Operating Temp.: | -20º C~70º C | Storage Temp.: | -30º C~80º C |
| High Light: | 6 O' clock 12864 lcd screen,FSTN STN 12864 lcd screen,FSTN Negative graphic lcd module |
||

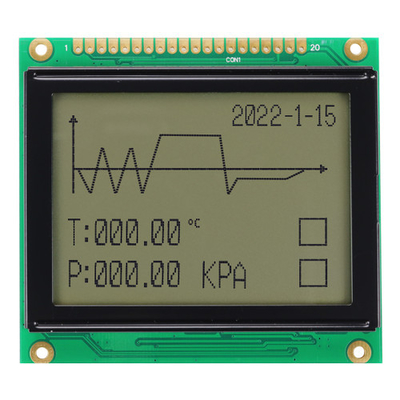

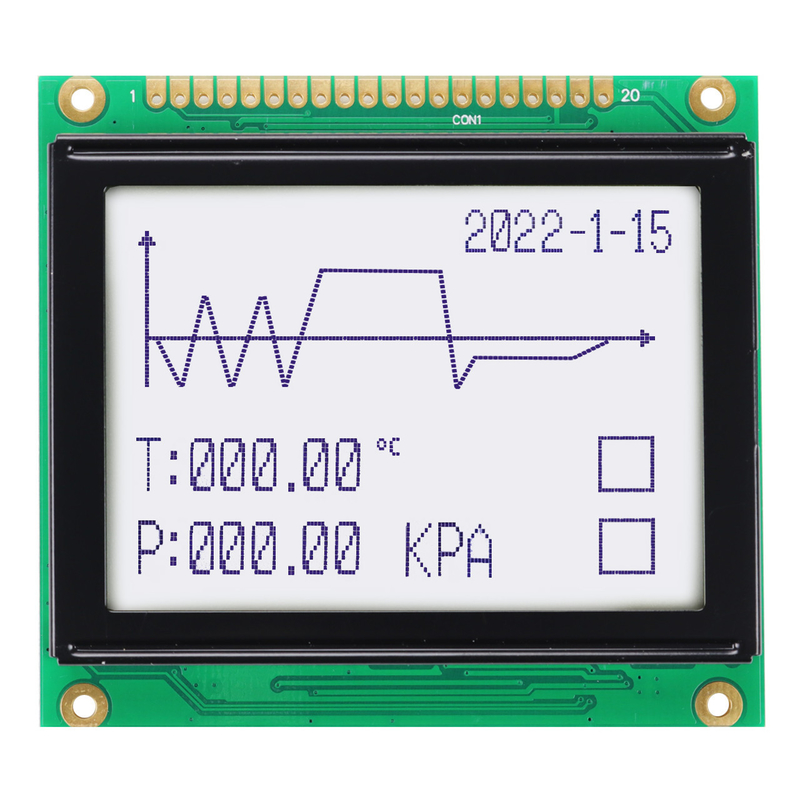

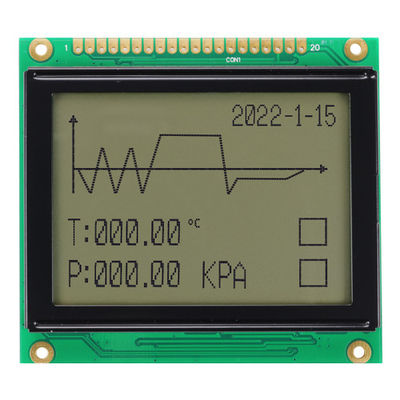

128x64 monochrome 20pin 3.3V FSTN/STN display screen 12864 graphic lcd module
Quick Detail of 128*64 Graphic LCD Module
Product Name: 128x64 graphic LCD module
| Item | Description |
| Product Name | 128x64 LCD Module |
| Model No. | LCM12864L |
| Dot Format | 128X64 |
| Outline (mm) | 78.0L×70.0W×12.5(max)H |
| View Area(mm) | 62.0x44.0 |
| Display Mode | FSTN |
| Duty | 1/64, 1/9bias |
| Driver IC | KS0107 |
| Viewing Direction | 6:00 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Contour Drawing of 128*64 Dot Matrix LCD Module
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Royal Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
