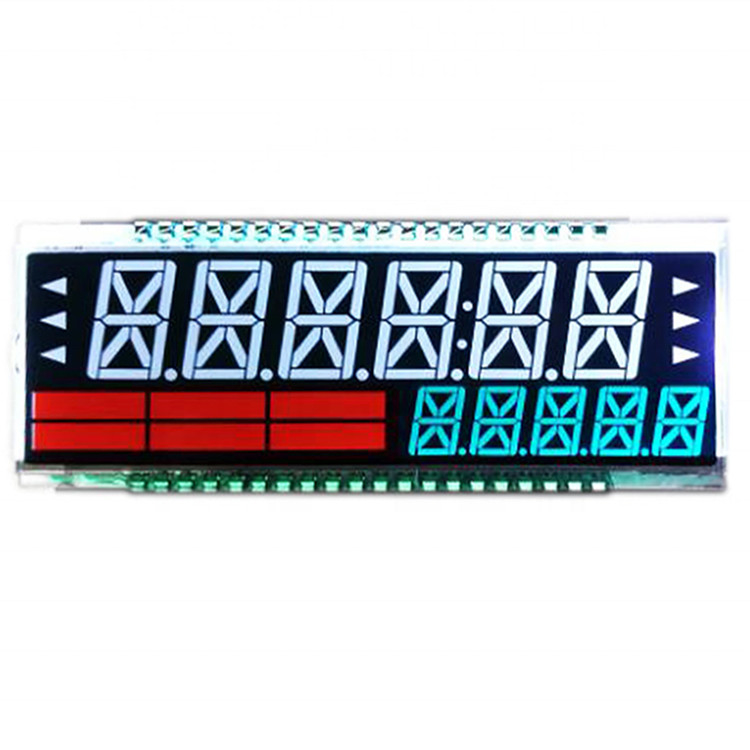

TN Negative Type Custom LCD Display 14 Segment Monochrome PIN Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | RoHS, REACH, ISO |
| Model Number: | RY-025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T, D/A, D/P |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Display Type: | TN Negative | Display Mode: | Transmissive |
|---|---|---|---|
| Viewing Angle: | 6 O'clock | Operating Method: | 1/4 DUTY 1/3 BIAS |
| Connector: | PIN | ||
| Highlight: | TN negative Custom LCD Display,PIN Connector Custom LCD Display,5.0V TN LCD Display |
||
Product Description
Custom LCD Display 14Segment Monochrome LCD TN Type Custom LCD Display
PRODUCT DETAIL
| Display type | TN negative Transmissive |
| Outline dimension | 79.4x29.2mm |
| VA size | 77.4x24.2mm |
| Viewing Angle | 6 O'clock |
| Operating Method | 1/4 DUTY 1/3BIAS |
| Storage temperature | 0℃ to + 50℃ |
| Connector | PIN |
| Driving Voltage | 5.0 V |
APPLICATION
FAQ:
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
1) Product information-Quantity,part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
