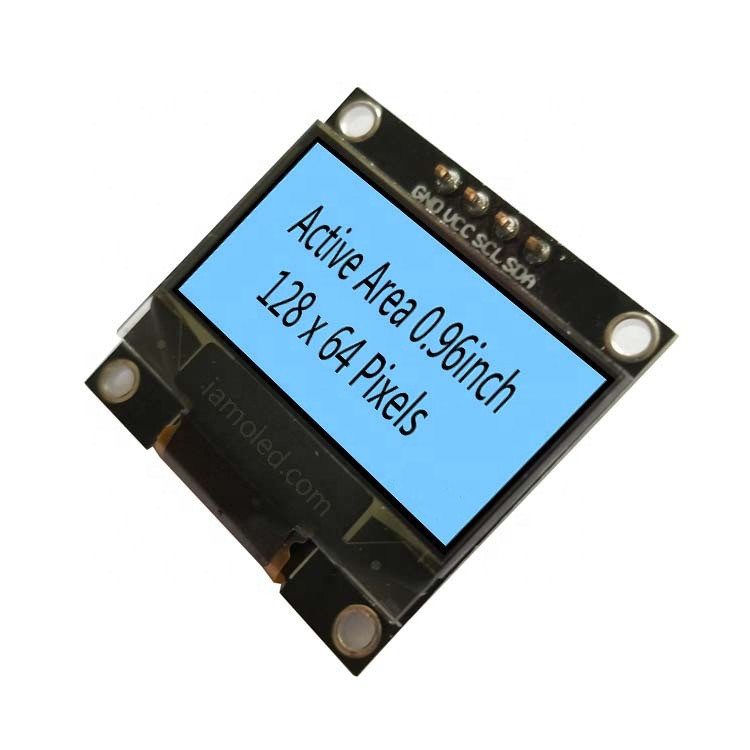

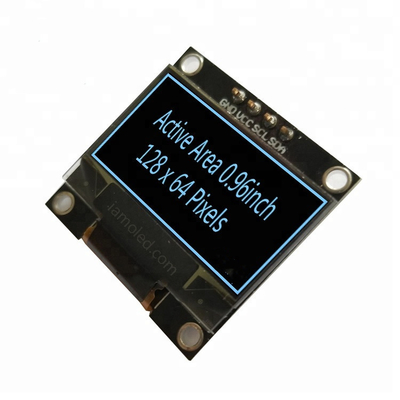

0.96 Inch OLED Display Module 128x64 Pixels I2c Serial Interface With PCB
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Diaplay |
| Certification: | ISO Rohs |
| Model Number: | RYOM-1602-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba |
| Delivery Time: | 20-28 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Type: | PM OLED | Number Of Pixels: | 128x64 |
|---|---|---|---|
| Display Mode: | Passive Matrix | Interface: | I2C |
| Drive Duty: | 1/64 Duty | Driver IC: | SSD1306 |
| Highlight: | 0.96'' OLED Display Module,OLED Display Module 128x64,I2c PM OLED Display Module |
||
Product Description
0.96 Inch OLED Display 128x64 Pixels I2c Serial Interface With PCB
PRODUCT DESCRIPTION
| Display Type: | oled display |
| Display Mode: | Passive Matrix |
| Diagonal Screen size: | 0.96 inch |
| Interface: | I2C |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 128x64 |
| Panel Size: | 27.5(W)x27.8(H)x3Max(T) |
| Driver IC: | SSD1306 |
| Active Area: | 21.7(W)x11.2(H) |
| Pixel Pitch: | 0.17(W)x0.17(H) |
| Pixel Size: | 0.15(W)x0.15(H) |
| Weight: | TBD |
| Operating Temperature: | -40~85° |
MORE OLED DISPLAY
PRODUCT APPLICATION
Our OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
Want to Know more details about this product
