100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display

100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display
100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display

Large Image :  100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYOM223-01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 10-15 Working Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 300k/Month
Detailed Product Description
Model No.: RYOM223-01 Resolution: 128x32 Dots
Display Color: Yellow/White/Blue Outline Dimensions: 63.2*43.1mm
Active Area: 60*18mm Controller IC: SSD1305
Interface: Parallel, SPI Or I2C Interface Operating Temp.: -20°C~+70°C
Storage Temp.: -30°C~+80°C Warranty: 1 Year
High Light:

100% Replace NHD-2.23-12832UCY3 OLED Display

,

2.23" OLED Display Module

,

128x32 Green OLED Display

100% replace NHD-2.23-12832UCY3 2.23'' 128*32 Green OLED display SSD1305

DESCRIPTION OF 2.23'' OLED DISPLAY WITH PCB

  • 2.23 inch monochrome oled display with PCB
  • 128x32 pixels oled with PCB
  • wide temperature oled
  • SSD1305/SSD1309 controller ic oled
  • Product description: 2.23 inch monochrome graphic oled display module with PCB, it is 128x32 resolution oled module. This 2.23'' mono oled screen, PCB, monochrome pm oled, with 128x32 pixels, supper wide temperature
1 Model Number RYOM223-01
2 Resolution 128*32
3 Display color Yellow/White/Blue
4 Dot Patch 0.22*0.19mm
5 Controller IC SSD1305
6 Outline Dimensions 63.2*43.1mm
7 Active Area 60*18mm
8 Interface Parallel, SPI or I2C interface
9 Operating Temp. -20°C~+70°C
10 Storage Temp. -30°C~+80°C

100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display 0


MORE INFORMATION ABOUT OLED DISPLAY

OLED Displays
Lighter, Brighter, and More Efficient
OLEDs offer bright, high contrast graphics with faster response times, wider viewing angles, and lower power consumption than conventional LCDs and VFDs. On this page you'll find all of our graphic OLEDs, available in character type and graphic types with screen sizes ranging from 0.95" to 3.12" and resolutions from 96x64 pixels to 256x64 pixels. Character OLED displays range from 2-line by 16 characters to 4-line by 20 characters and are available in a variety of colors including green, yellow, blue, white, and full color.


DETAILED IMAGES

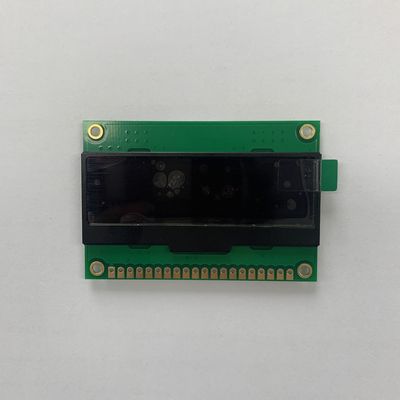

100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display 1

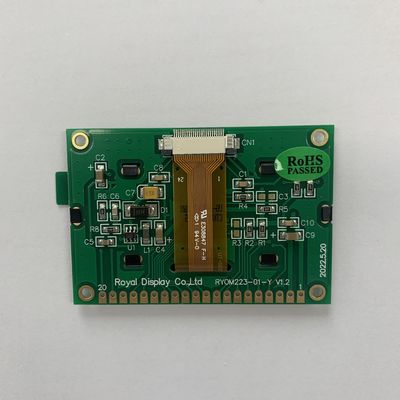

100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display 2



2.23 inch monochrome graphic OLED display module with PCB introduction:

Mono graphic OLED screen 2.23inch with PCB 128x32 pixels is mono oled display module, 128x32 pixels mono oled display screen.

The 2.23 inch monochrome oled display with PCB, is a graphic passive matrix oled display, it have 128x32 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time.


Mono graphic OLED display module screen-2.23inch oled screen with PCB:

because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than TFT LCD module,

and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.

2.23’’ 128x32 OLED lcd display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.

2.23 inch OLED screen with PCB 128x32 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

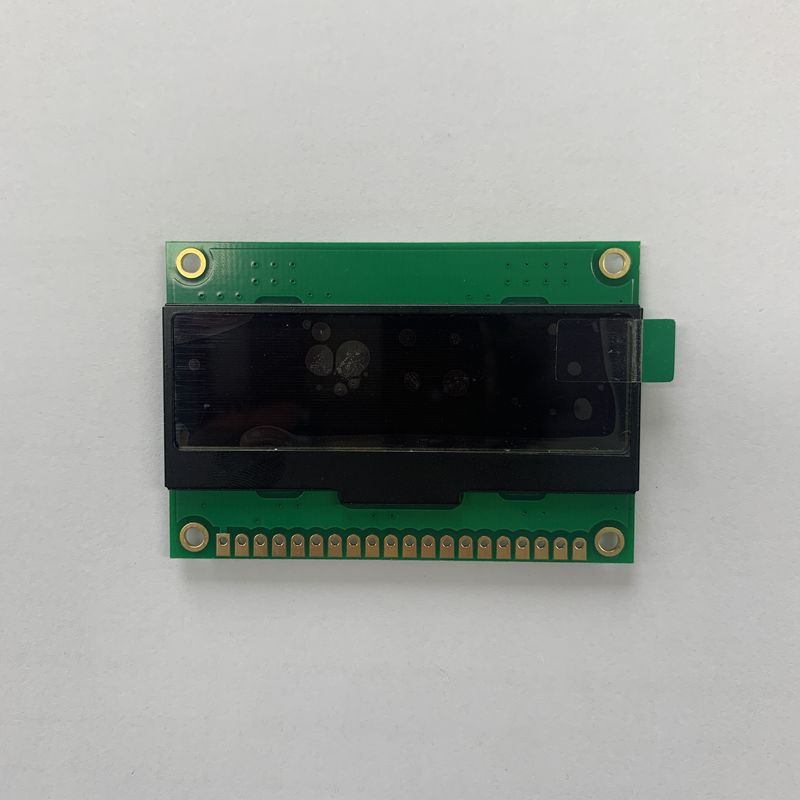

100% Replace NHD-2.23-12832UCY3 2.23" 128x32 Green OLED Display 3

ABOUT ROYAL DISPLAY'S GRAPHIC OLED DISPLAY


Royal Display's graphic OLED display are available in three mechanical structures include COB and COG passive matrix technology. Available graphic monochrome OLED resolution in 50x16 OLED graphic display, 64x128 OLED, 100x8 OLED graphic, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128X32, OLED display 128x64, OLED 128X128, and 256X64 OLED the graphic OLED display in the Royal Display product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.

Royal Display offers a wide range of OLED display modules in sizes from 0.49''to 5.5'' OLED, we also specilize in custom design solutions.

Royal Display small OLED display module are perfect for a number of devices that require electronic display panel. These applications include wearable devices, E-cigarette, POS system, white goods, home applications, industrial instrument, POS system, automation, audio/visual display systems, medical devices, personal care appliances, household goods, automobile displays, Dynamic information displays.
