Product Details:
Payment & Shipping Terms:
|
| LCD Display Type: | Stn | Dot Format: | 160*32 |
|---|---|---|---|
| Module Size(mm): | 122.0(W)*44.0(H)*9.60(D) | Viewing Area(mm): | 99.0(W)*24.0(H) |
| Drive IC: | St7920 | Supply Volatge Logic: | 5.25V |
| High Light: | 160x32 Graphic LCD Module,ST7920 Drive IC Graphic LCD Module,ST7920 Drive IC Graphic LCD Display |
||

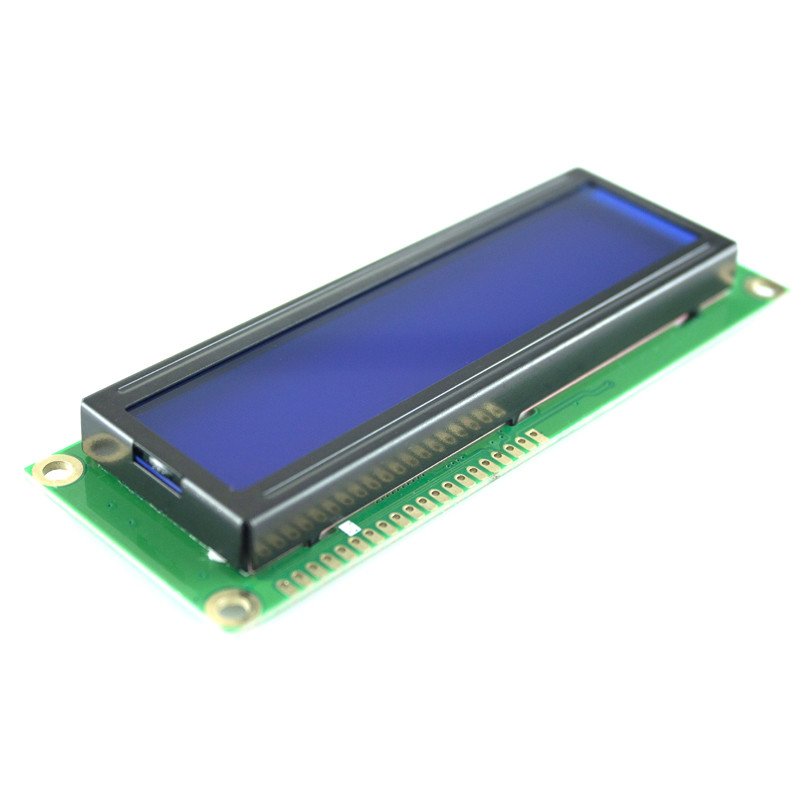

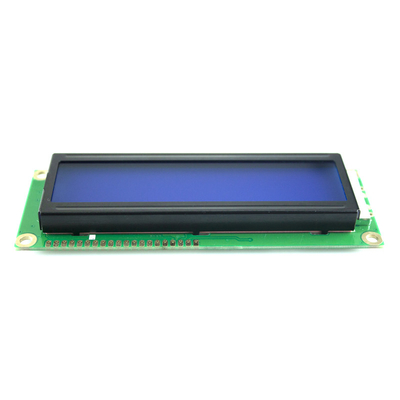

Custom 160X32 Graphic LCD Moduel With STN FSTN DFSTN Optional Mode
Product description
| Item | Description |
| Product Name | STN 160*32dots LCD Display |
| Model No. | RYP16032A |
| Dot Format | 160*32 |
| Module Size(mm) | 122.0(W)*44.0(H)*9.60(D) |
| Viewing Area(mm) | 99.0(W)*24.0(H) |
| Dot Pitch(mm) | 0.59(W)*0.60(H) |
| Dot Size(mm) | 0.55(W)*0.56(H) |
| Driver IC | ST7920 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
WHAT CAN WE CUSTOM?
1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2. Display form: LCD panel/COB/COG/COF
3. Polarizer: Transflective, Transmissive, Reflective
4. Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5. Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6. Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
