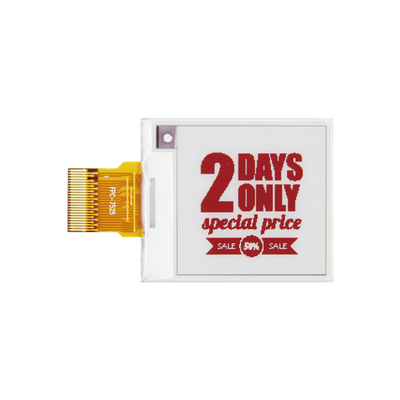

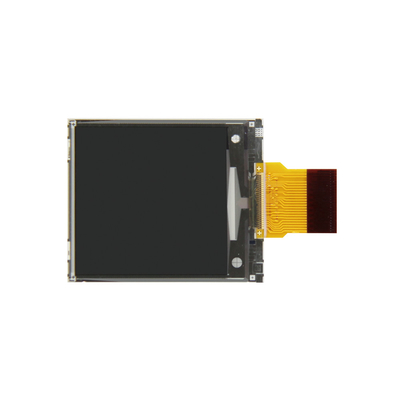

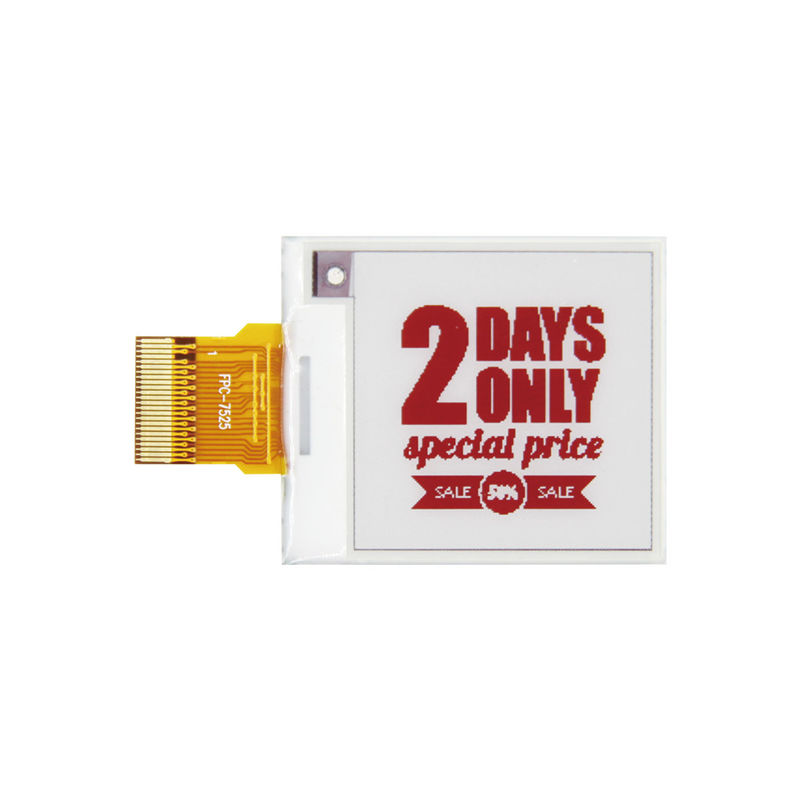

1.54" E Ink Display Module EPD Low Power Consumption Epaper Display 200×200
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HOLITECH |
| Certification: | ROHS |
| Model Number: | E0154A45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~20 working days |
| Payment Terms: | L/C T/T, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Product Name: | 1.54''Epaper Display | Type: | Epaper Display, Epaper |
|---|---|---|---|
| Display Size: | 1.54'' | Resolution: | 200*200 |
| Module Size(mm): | 31.8(H)X37.32(V)X1.0(D) | Active Area(mm): | 27.0(H)X27.0(V) |
| Highlight: | 1.54" E Ink Display Module,EPD E Ink Display Module,200×200 Epaper Display |
||
Product Description
1.54'' E-ink Display Module EPD Low Power Consumption epaper Display
PRODUCT DECRIPTION
|
Size
|
1.54inch
|
|
Display modes
|
Red,White,Black
|
|
Operation Temp.
|
0-40ºC
|
|
Resolution(mm)
|
152(H)x152(V)
|
|
DPI
|
140
|
|
Active Area
|
27.512×27.512
|
|
Outline size
|
31.80(H)×37.32 (V) ×1.0(D)
|
|
working voltage
|
-0.3 to +6.0
|
|
Typical peak current
|
2.2~3.7v
|
|
Typical operating current
|
3.0V
|
|
Grey level
|
2Grey Level
|
ADVANTAGE OF E-INK SCREEN
The electronic ink screen uses a technique called "microcapsule electrophoresis display" to display images. It works because charged nanoparticles suspended in a liquid are transported by an electric field and reflected under ambient light to produce a display effect similar to that of traditional printed paper. E-Ink screens can display images clearly in ambient light, natural light and so on, without backlighting, and can be seen from an angle of almost 180°. Because of its comparable display effect to traditional paper, it is often used in applications such as readers.
APPLICATION
The electronic paper display supports user's custom setting to display text, pictures, QR code and other information. Compared with the traditional LCD electronic price tag which is less than 120°, the visual angle of electronic paper is more than 170°. Moreover, compete with LCD products, the electronic paper display has a higher screen contrast, which brings higher use experience to customers in practical application.
Due to the screen engineering characteristics, the electronic paper price tag only generates power consumption when refreshing the screen content, and daily display does not consume energy. Longer service life adapts to all kinds of long-time standby mode working environment, supports 7*24H*365 days of uninterrupted work. As one of the major technologies of the IOT, e-paper is bound to receive more attention in the future. You're going to see more and more products based on electronic paper screens in the near future.
