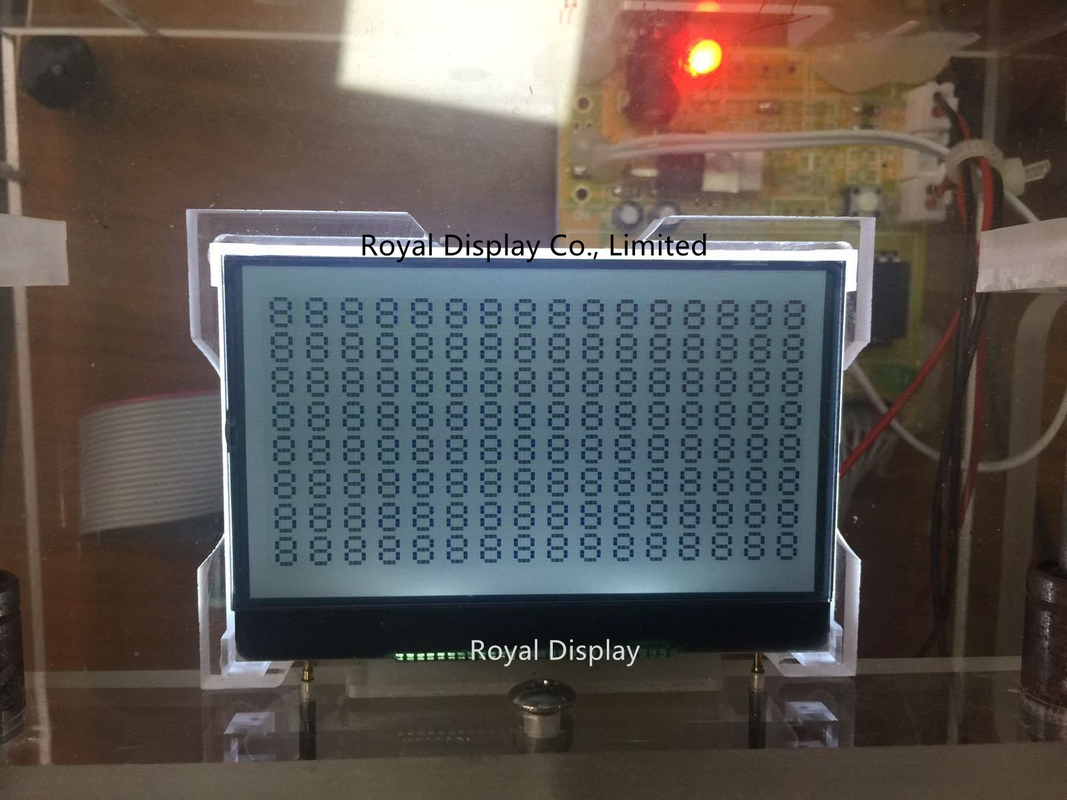

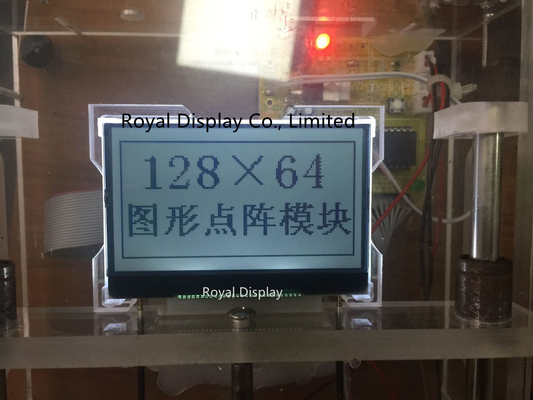

60mA Graphic LCD Display 128X64 FSTN COG With ST7565R 4 Line Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYG12864 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| LCD Type: | FSTN, Transflective, Positive | Viewing Direction: | 6 O'clock |
|---|---|---|---|
| Viewing Area(mm): | 70.0(L)X40.0(W) | Module Size(mm): | 77.4(L)X52.4(W)X10.5(T) |
| Dots Size(mm): | 0.48(L)X0.48(W) | Dots Pitch(mm): | 0.52(L)X0.52(W) |
| Highlight: | 60mA Graphic LCD Display,128X64 FSTN Graphic LCD Display,FSTN COG Lcd Monitor Module |
||
Product Description
128X64 FSTN COG Graphic LCD Module With ST7565R 4-Line Interface
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 128X64dots FSTN Graphic LCD Display |
| LCD Type | FSTN |
| Model No. | RYG12864F |
| Display Area(mm) | 66.52(W)X33.24(H) |
| Driver IC | ST7565R |
| Interface | 4-Line Interface,8bit-6800,8bit-8080 |
| VDD&VLCD(Type) | 3.3 & 9.0 |
| Backlight(Type) | White,3.2V , 60mA |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
