Product Details:
Payment & Shipping Terms:
|
| Display Type: | Stn Gray, Positive | Display Mode: | Transmissive |
|---|---|---|---|
| DOT Format: | 240X128 | Viewing Direction: | 6 O'clock |
| IC Package: | COB | Drive IC: | UCI6963 |
| Supply Voltage Logic: | 5.25V | Supply Votage Logic: | 12.0V |
| High Light: | STN Gray COB LCD Display,240X128 Dots COB LCD Display,5.25V Monochrome LCD Module |
||
PRODUCT DESCRIPTION
1. 240X128dots
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
| Item | Description |

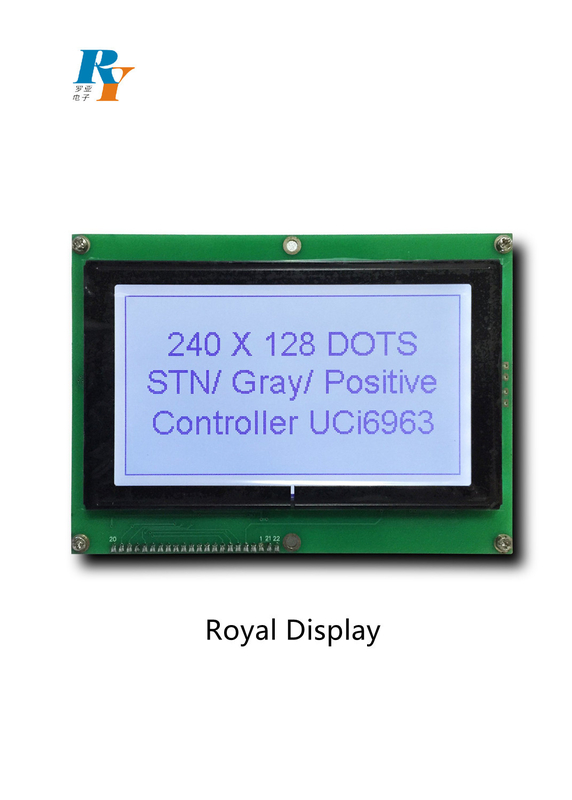

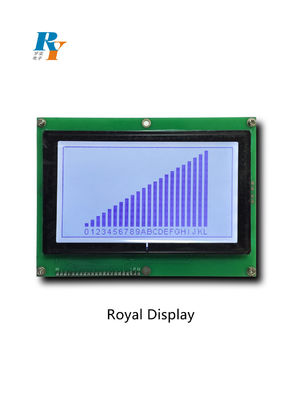

| Product Name | 240X128 Graphic LCD Module |
| Model No. | RY240128C |
| Dot Format | 240 X128 |
| Outline Size(mm) | 144.0(W)*104.0(H)*13.2(D) |
| Viewing Area(mm) | 114.0(W)*64.0(H) |
| Dot Pitch(mm) | 0.45X0.45 |
| Dot Size(mm) | 0.42X0.42 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
1. Q: Order process
A: PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2. Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3. Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4. Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5. Q: RMA Process
A: Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report → Proceeding as per the Report both agreed
6. Q: Notes
A: Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
