100X64 STN Graphic LCD Module 8.8V Monochrome COB FSTN Positive

100X64 STN Graphic LCD Module 8.8V Monochrome COB FSTN Positive
100X64 STN Graphic LCD Module 8.8V Monochrome COB FSTN Positive

Large Image :  100X64 STN Graphic LCD Module 8.8V Monochrome COB FSTN Positive

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: Rohs,ISO9001
Model Number: RYP10064A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25~28 Working Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300k/Month
Contact Now
Detailed Product Description
Display Type: Stn(Y/G),Positive Polarizer Mode: Transflective

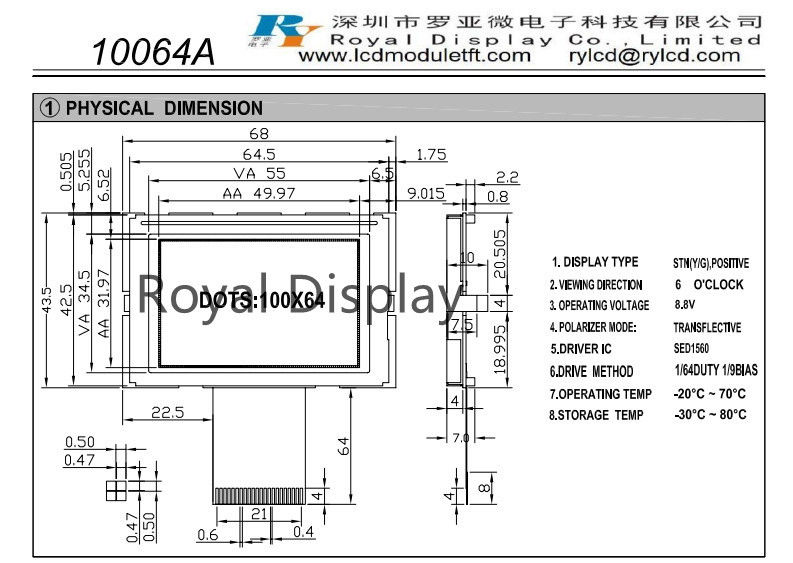

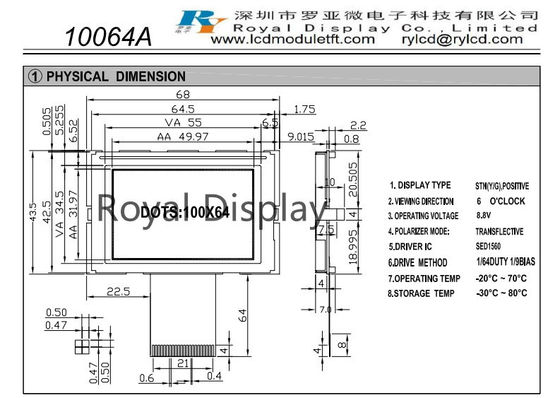

DOT Format: 100X64 Outline Size(mm): 68.0(W)*43.5(H)*7.0(D)
Viewing Area(mm): 55.0(W)*34.5(H) Operating Voltage: 8.8V
Viewing Direction: 6 O'clock Drive IC: S1d1560
Highlight:

100X64 STN Graphic LCD Module

,

FSTN Positive Graphic LCD Module

,

8.8V Monochrome COB LCD Display

100X64 STN Yellowgreen Graphic LCD Module Monochrome COG LCD Display



PRODUCT DESCRIPTION

1. 100x64 Dots
2. FSTN Positive,STN-Blue/Gray display results as option



Item Description
Product Name 100x64dots Graphic LCD Module

Model No.

 RYP10064A
Dot Format 100*64
Outline Size(mm) 68.0(W)*43.5(H)*7.0(D)
Viewing Area(mm) 55.0(W)*34.5(H)
Dot Pitch(mm) 0.50(W)*0.50(H)
Dot Size(mm) 0.47(W)*0.47(H)
Operating Temp -20º C~70ºC
Storage Temp -30º C~80º C



100X64 STN Graphic LCD Module 8.8V Monochrome COB FSTN Positive 0

OUR SERVICE ADVANTAGES

1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/T, Western Union,L/C, PayPal.

4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Service: Best after-sales service to ensure satisfaction from customers.

6. Warranty: Usually, product warranty for one year.

7. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.

100X64 STN Graphic LCD Module 8.8V Monochrome COB FSTN Positive 1
