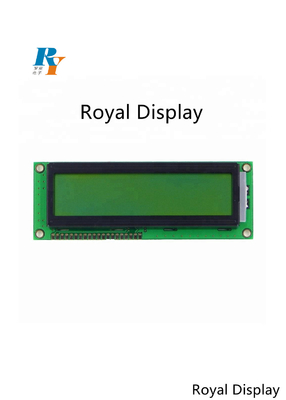

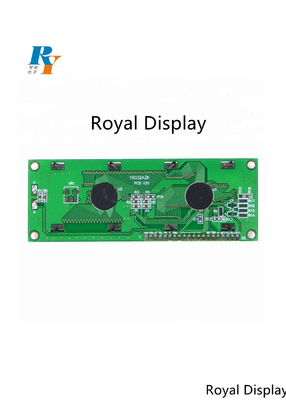

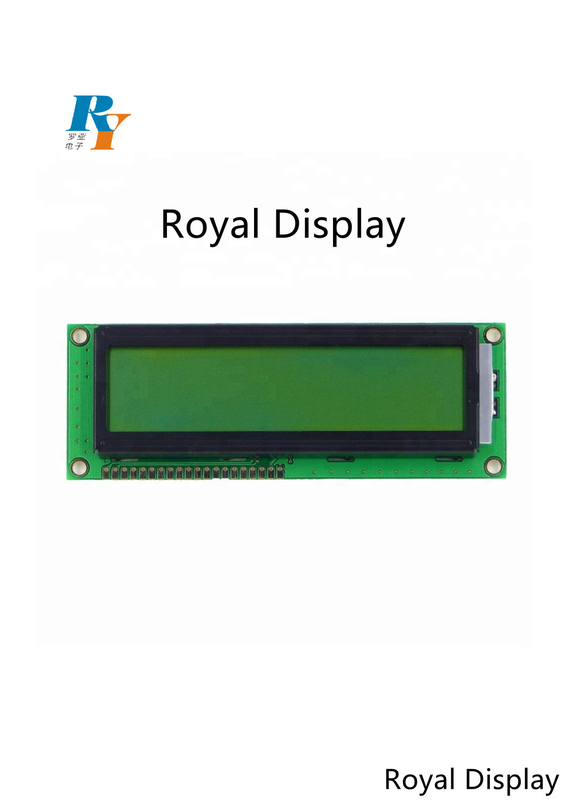

160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module

160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module
160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module 160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module

Large Image :  160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ISO Rohs
Model Number: RYP16032A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25~28 Working Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300k/Month
Contact Now
Detailed Product Description
LCD Display Type: Stn DOT Format: 160X32
Module Size(mm): 122.0(W)*44.0(H)*9.60(D) Viewing Area(mm): 99.0(W)*24.0(H)
Drive IC: St7920 Supply Volatge Logic: 5.25V
Highlight:

Stn Gray Graphic Touch Screen Module

,

FPC FSTN LCD Monochrome Panel

,

FPC Soldering Graphic LCD Screen

160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module



PRODUCT DESCRIPTION

1. 160x32 dots
2. According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen,

FSTN and STN lcd display, industrial lcd, we can match all.

3. Accessories which inclusive of driver board,LED backlight & LVDS cables.

4. ODM/OEM accetable

5. Various LCD Display Mode with different backlight color and temperature range available

Item Description
Product Name Stn 160*32 Dots Monochrome LCD Screen
LCD Type STN
Dot Format 160X32
Module Size(mm) 122.0(W)*44.0(H)*9.60(D)
Viewing Area(mm) 99.0(W)*24.0(H)
Dot Pitch(mm) 0.59(W)*0.60(H)
Dot Size(mm) 0.55(W)*0.56(H)
Supply Voltage Driver 15.0V
Supply Volatge Logic 5.25V
Operating Temp -20º C~70ºC
Storage Temp -30º C~80º C

160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module 0





FAQ



1. Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
2. Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
3. Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.

4. Q:How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
