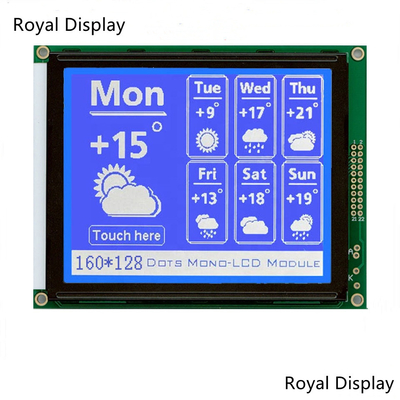

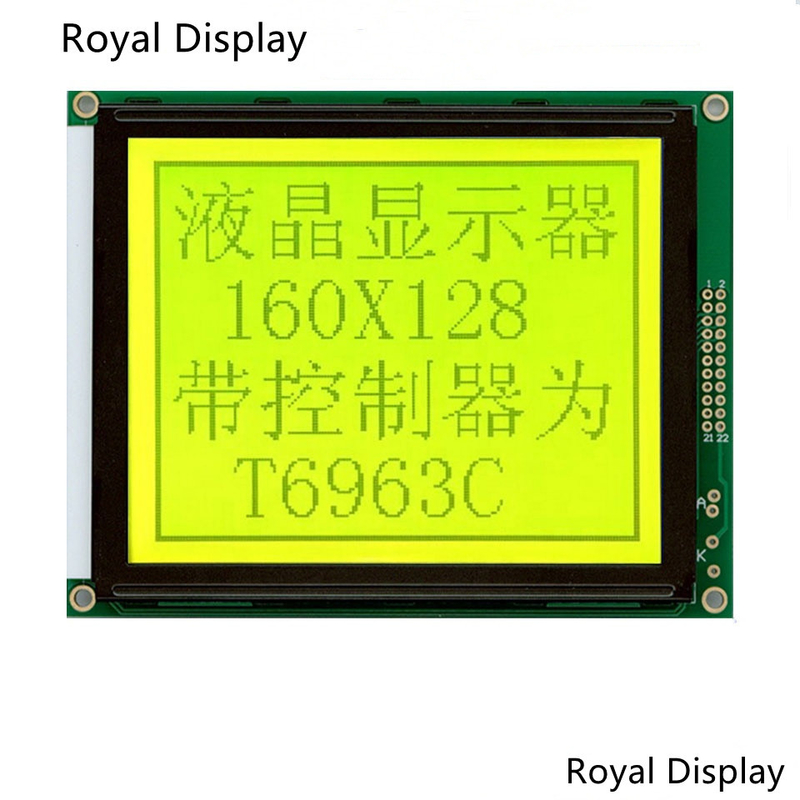

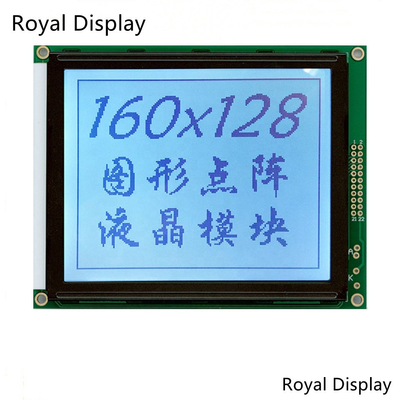

4.7inch 160X128 129*102mm Graphic Matrix LCD Module with Backlight

Large Image : 4.7inch 160X128 129*102mm Graphic Matrix LCD Module with Backlight

Product Details:

Place of Origin:	China
Brand Name:	ROYAL DISPLAY
Certification:	ISO Rohs
Model Number:	RYP160128A

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25~28 Working Days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	300k/Month

Contact Now

Detailed Product Description

LCD Display Type:	STN	DOT Format:	160X128
Module Size(mm):	129.0(W)102.0(H)15.2(D)	Viewing Area(mm):	101.0(W)*82.0(H)
Driver IC:	T6963c	Supply Volatge Logic:	5.25V
Supply Voltage Driver:	20.0V	Driving Method:	1/128duty 1/12 Bias
Highlight:	Stn Gray Graphic Touch Screen Module , FPC FSTN LCD Monochrome Panel , FPC Soldering Graphic LCD Screen

4.7inch 160X128 129*102mm Graphic Matrix LCD Module with Backlight

PRODUCT DESCRIPTION

Item	Description
Product Name	160*128dots LCD Display
Model No.	RYP160128A
Dot Format	160*128
Module Size(mm)	129.0(W)102.0(H)15.2(D)
Viewing Area(mm)	101.0(W)*82.0(H)
Dot Pitch(mm)	0.58(W)*0.58(H)
Dot Size(mm)	0.54(W)*0.54(H)
Driver IC	T6963C
Operating Temp	-40º C~70ºC
Storage Temp	-40º C~80º C

4.7inch 160X128 129*102mm Graphic Matrix LCD Module with Backlight 0

OUR SERVICE ADVANTAGES
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
7. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
8. If mass production has any quality problem, customer can return it.

9. Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure the safe.
4.7inch 160X128 129*102mm Graphic Matrix LCD Module with Backlight 1
