Product Details:
Payment & Shipping Terms:
|
| LCD Display Type: | FSTN, Transflective, Positive | DOT Format: | 192X80 |
|---|---|---|---|
| Driver Method: | 1/128 Duty 1/12bias | Module Size(mm): | 63.90(L)X34.25(W)X13.40(T) |
| Active Area(mm): | 51.82(L)X21.58(W) | Driver IC: | UC1608xfge-U0 |
| Logic Supply Voltage: | 3.3V | LCD Driving Voltage: | 15.0V |
| High Light: | Stn Gray Graphic Touch Screen Module,FPC FSTN LCD Monochrome Panel,FPC Soldering Graphic LCD Screen |
||

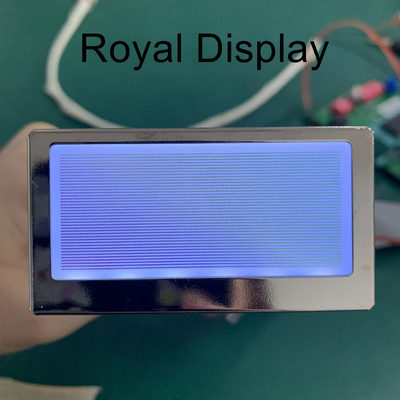

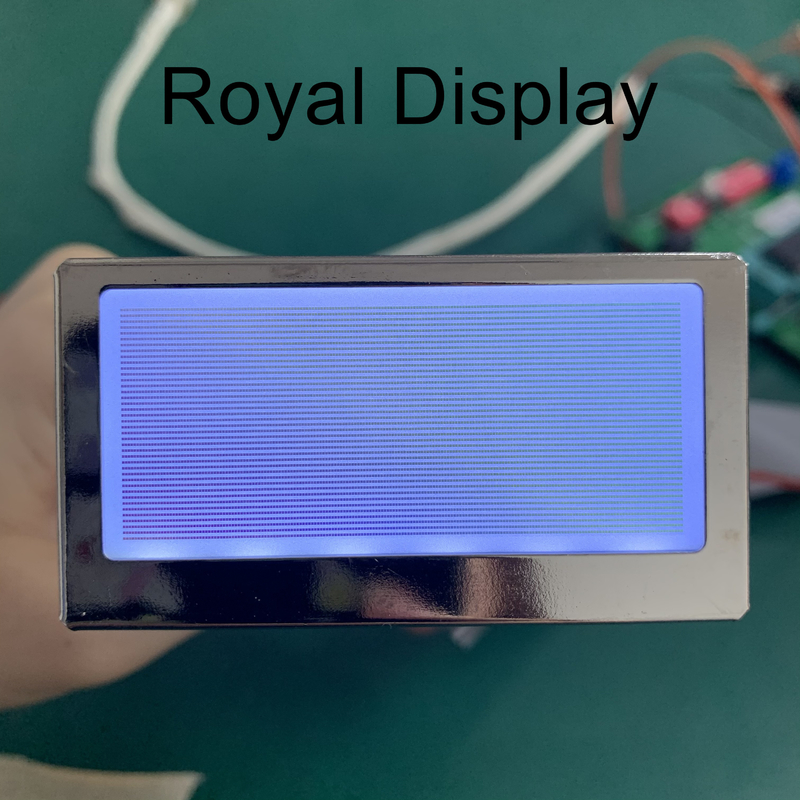

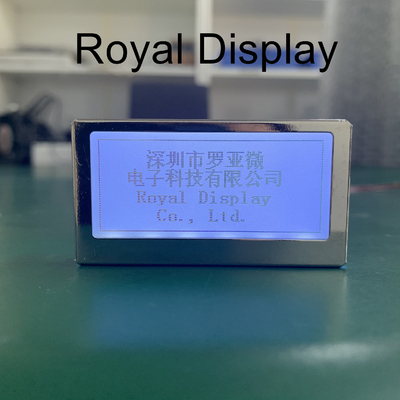

192X80 Dots FSTN Transflective Positive Graphic LCD Display Module
PRODUCT DESCRIPTION
1. 192x80 dots
2. According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen,
FSTN and STN lcd display, industrial lcd, we can match all.
3. Accessories which inclusive of driver board,LED backlight & LVDS cables.
4. ODM/OEM accetable
5. Various LCD Display Mode with different backlight color and temperature range available
| Item | Description |
| LCD Type | FSTN |
| Model No. | RYP19280A |
| Module Size(mm) | 63.90(L)X34.25(W)X13.40(T) |
| Active Area(mm) | 51.82(L)X21.58(W) |
| Drive Method | 1/128 duty 1/12bias |
| Backlight | White Vf=3.3v,If=90mA |
| Operating Temp | -40º C~70ºC |
| Storage Temp | -40º C~80º C |
OUR SERVICE ADVANTAGES
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
7. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
8. If mass production has any quality problem, customer can return it.
9. Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure the safe.
