Product Details:
Payment & Shipping Terms:
|
| LCD Type: | FSTN, Transflective, Positive | Viewing Direction: | 6 O'clock |
|---|---|---|---|
| Viewing Area(mm): | 70.0(L)X40.0(W) | Module Size(mm): | 77.4(L)X52.4(W)X10.5(T) |
| Dots Size(mm): | 0.48(L)X0.48(W) | Dots Pitch(mm): | 0.52(L)X0.52(W) |
| High Light: | Stn Film Graphic LCD Display,FSTN FFC Graphic Display Module,Stn Monochrome Graphic LCD Screen |
||
| Item | Description |

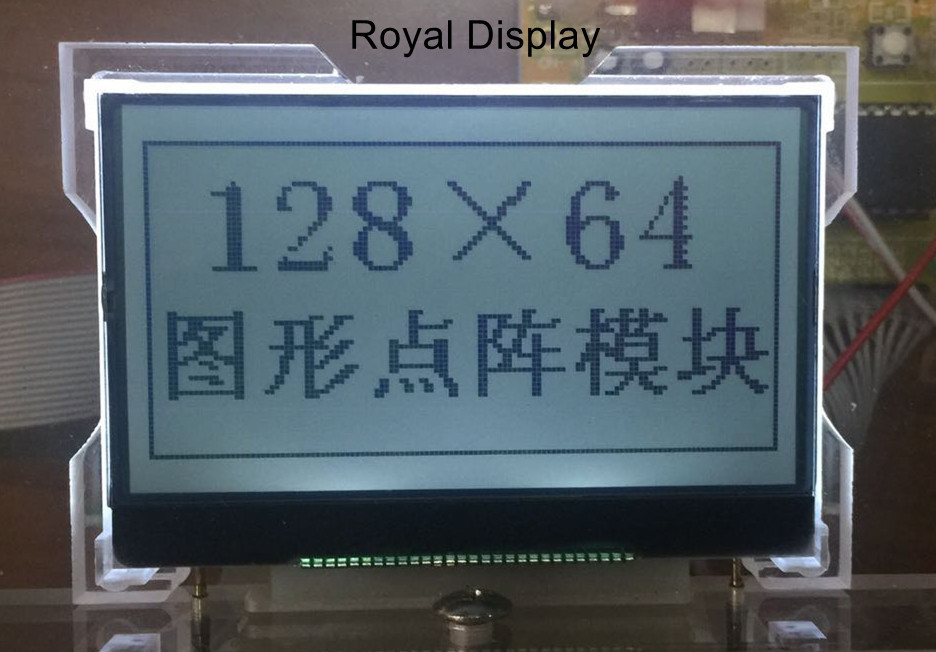

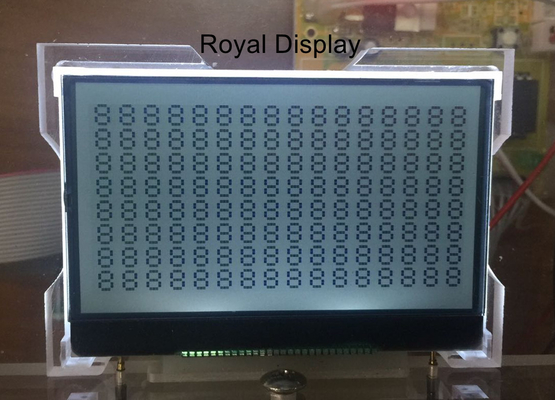

| Product Name | 128X64dots FSTN Graphic LCD Display |
| LCD Type | FSTN |
| Model No. | RYG12864F |
| Display Area(mm) | 66.52(W)X33.24(H) |
| Driver IC | ST7565R |
| Interface | 4-Line Interface,8bit-6800,8bit-8080 |
| VDD&VLCD(Type) | 3.3 & 9.0 |
| Backlight(Type) | White,3.2V , 60mA |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Graphic LCD can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.
FEATURES
1. Wide variety of off the shelf sizes and resolutions
2. Most products kept in stock and can ship same day
3. Ability to display fully changeable graphics
4. Sunlight readable
5. Low power consumption
APPLICATIONS
FAQ
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Can you produce on the OEM?
A: Yes, we can.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
