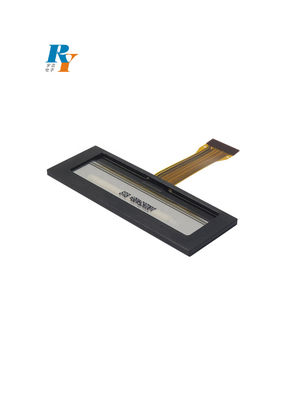

128x22 OLED Display Module White SSD1305 Driver Cog SPI Monochrome
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RY-12822TSWEG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba |
| Delivery Time: | 15-20 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Resolution: | 128X22 | Panel Size (mm): | 64.8(W)X23.5(H)X2.15(D) |
|---|---|---|---|
| Active Area(mm): | 58.85(W)X11.85(H) | Interface: | 8-Bit Parallel/Spi/I2c |
| Controller IC: | SSD1305 | Luminance: | 120cd/m2 |
| Highlight: | 2.36 Inch OLED Display Module,128x22 OLED Display Module,SPI Monochrome Cog Display Module |
||
Product Description

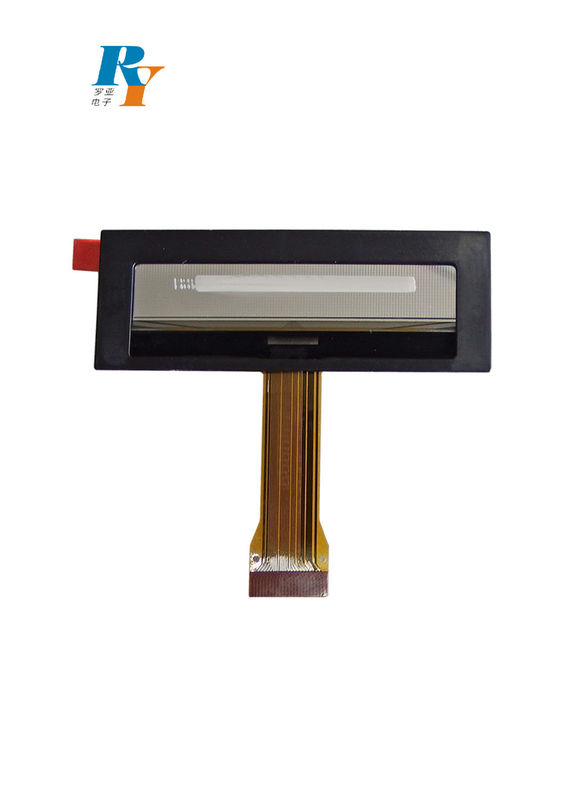

2.36 Inch 128x22 OLED Display Module White SSD1305 Driver Cog Display
PRODUCT DESCRIPTION
128x22 OLED Display White | RY-9632TSWZG02
Active Area: 58.85(W)X11.85(H)
Controller IC: SSD1305
| Item | Description |
| High Contrast | 2000:1 |
| Luminance | 120 cd/m2 |
| Operating Temp. | -30°C~+70°C |
| Storage Temp. | -40°C~+80°C |
PRODUCT APPLICATION
Our 2.36 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
FAQ
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.
Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
