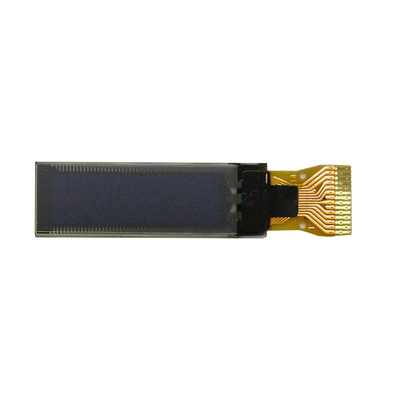

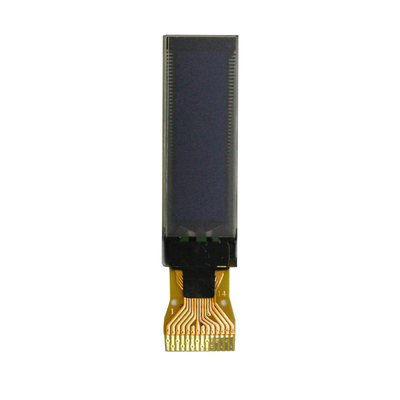

0.86 Inch 96X32 OLED Display Panel Monochrome SSD1316 I2c Cog

0.86 Inch 96X32 OLED Display Panel Monochrome SSD1316 I2c Cog
0.86 Inch 96X32 OLED Display Panel Monochrome SSD1316 I2c Cog 0.86 Inch 96X32 OLED Display Panel Monochrome SSD1316 I2c Cog

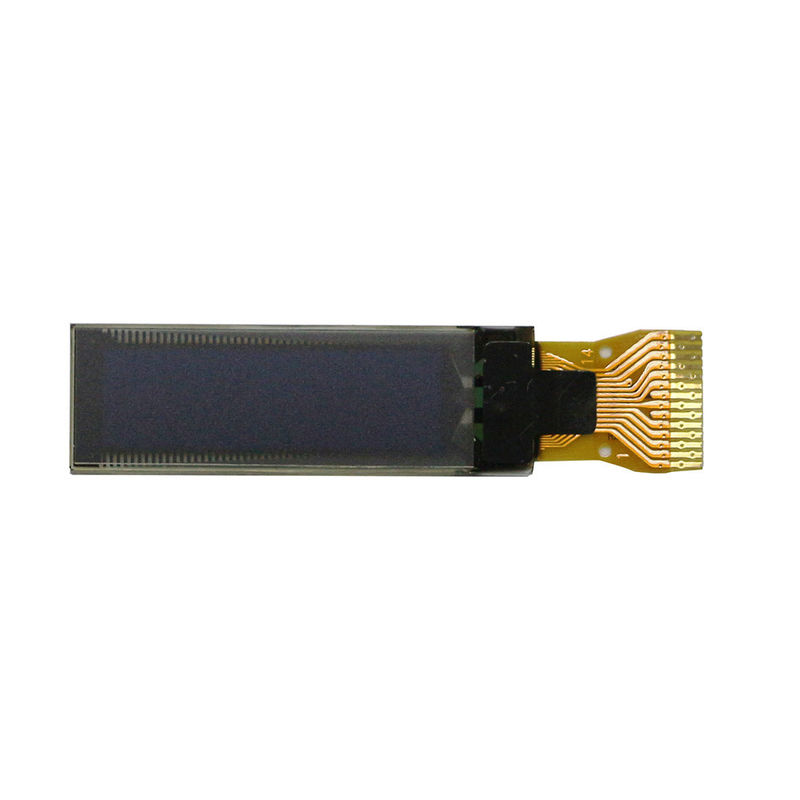

Large Image :  0.86 Inch 96X32 OLED Display Panel Monochrome SSD1316 I2c Cog

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY-9632TSWZG02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Resolution: 96X32 Display Color: Blue White Optional
Panel Size (mm): 29.1(W)X9.2(H)X1.2(D) Active Area(mm): 21.1(W)X6.06(H)
Controller IC: SSD1316 Pins: 14
High Light:

0.86 Inch OLED Display Panel

,

96X32 OLED Display Panel

,

Monochrome Cog Micro Panel Module

0.86 Inch 96X32 OLED Display Panel Blue White Optional Light SSD1316 I2c Cog

PRODUCT DESCRIPTION

96x32 Monochrome OLED Display | RY-9632TSWZG02

Active Area: 21.1(W)X6.06(H)

Controller IC: SSD1316



Item Description
Drive Duty 1/32 Duty
Dot Patch 0.17*0.17mm
Frame Rate 140Frames/Sec
Brightness 120(min)cd/m2
Panel Pitch(mm) 0.22(W)×0.19(H)
Panel Size(mm) 0.2(W)×0.17(H)
Interface I2C
Operating Temp. -30°C~+70°C
Storage Temp. -40°C~+80°C





PRODUCT APPLICATION

Our 0.86 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.


0.86 Inch 96X32 OLED Display Panel Monochrome SSD1316 I2c Cog 0

FAQ



Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.



Q: Can we visit your factory?
A: You are welcome to visit us.



Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.



Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.



Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.



Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
