1.54 Inch 128X64 OLED Screen Module Cog Monochrome 24 Pin SPD0301
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Diaplay |
| Certification: | ISO Rohs |
| Model Number: | RY-2864KSWNG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba |
| Delivery Time: | 20-28 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| DOT Matrix: | 128(W)X64(H) | Display: | OLED White |
|---|---|---|---|
| Module Size (mm): | 42.04(W)X27.22(H)X1.4(D) | Active Area(mm): | 35.052(W)X17.516(H) |
| Driver IC: | SPD0301 | Pins: | 24 |
| Highlight: | 1.54 Inch OLED Screen Module,128X64 OLED Screen Module,Cog Monochrome OLED Display |
||
Product Description

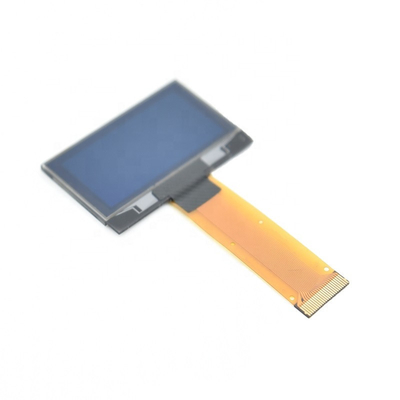

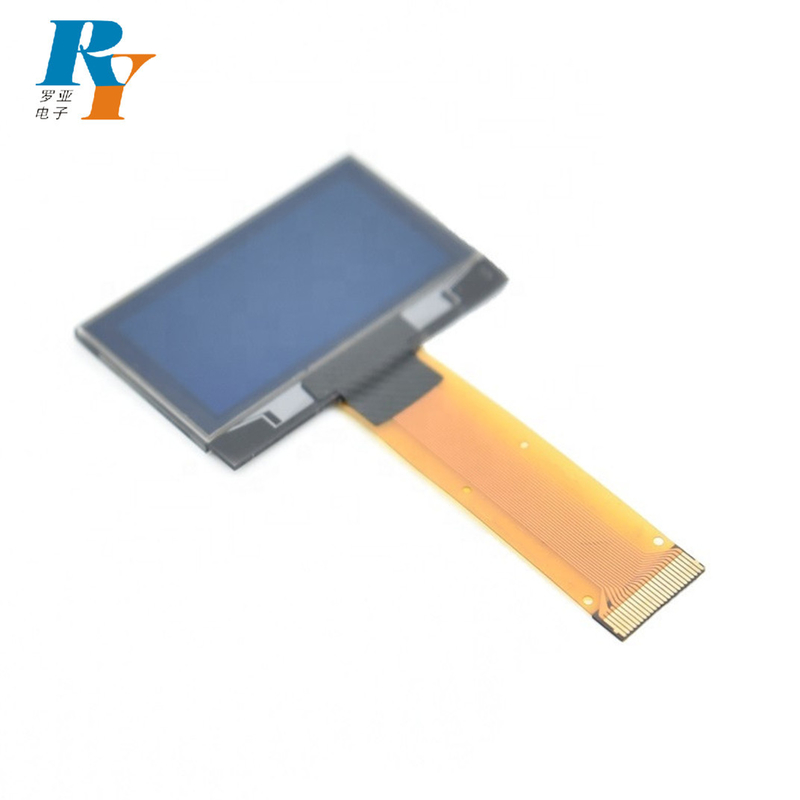

1.54 Inch 128X64 Pixels OLED Display White Cog Monochrome 24pin SPD0301 Display
PRODUCT DESCRIPTION
| Item | Description |
| Dot Matrix | 128X64 |
| Driver IC | SPD0301 |
| Duty | 1/64 |
| Frame Rate | 100Frames/Sec |
| Brightness | 100(min)cd/m2 |
| Pixel Pitch(mm) | 0.274(W)×0.274(H) |
| Pixell Size(mm) | 0.254(W)×0.254(H) |
| Interface | Parallel /I2C |
| Operating Temp. | -40º C~70ºC |
| Storage Temp. | -40º C~85ºC |
MORE OLED DISPLAY
PRODUCT APPLICATION
Our OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
