128X32 COG OLED Display Monochrome 2.23 Inch Parallel IC 24 Pins

Large Image : 128X32 COG OLED Display Monochrome 2.23 Inch Parallel IC 24 Pins

Product Details:

Place of Origin:	China
Brand Name:	Royal Diaplay
Certification:	ISO Rohs
Model Number:	RY-2832ASWCG01

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba
Delivery Time:	20-28 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	300k/Month

Contact Now

Detailed Product Description

DOT Matrix:	128(W)X32(H)	Display:	Yellow-Blue-White Light Optional
Panel Size (mm):	62.0(W)X24.0(H)X2.0(D)	Active Area(mm):	55.02(W)X13.1(H)
Driver IC:	SSD1305	Pins:	24
Highlight:	128X32 COG OLED Display , 2.23 Inch COG OLED Display , Parallel IC Monochrome OLED Module

2.23 Inch 128X32 COG OLED Display Monochrome Yellow-Blue-White Light Optional

PRODUCT DESCRIPTION

Item	Description
Dot Matrix	128X32
Driver IC	SSD1305
Duty	1/132
Frame Rate	100Frames/Sec
Brightness	100(min)cd/m2
Pixel Pitch(mm)	0.43(W)×0.41(H)
Pixell Size(mm)	0.41(W)×0.39(H)
Interface	Parallel IC/ 4-wire SPI 2
Operating Temp.	-30º C~70ºC
Storage Temp.	-40º C~80ºC

MORE OLED DISPLAY

PRODUCT APPLICATION
Our OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.

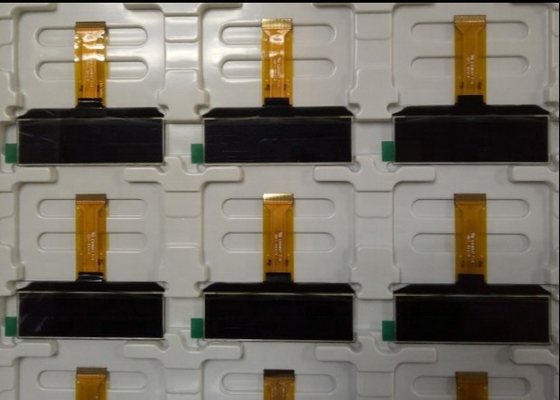

128X32 COG OLED Display Monochrome 2.23 Inch Parallel IC 24 Pins 1

OUR SERVICE ADVANTAGES

1.Small order would be accepted.

2.Mass production lead time would be guaranteed.

3.Each order will have 0.2%-0.5% spare.

4.Even customers do not have a cooperation with us, we also can provide technical services.

5.If mass production has any quality problem, customer can return it.

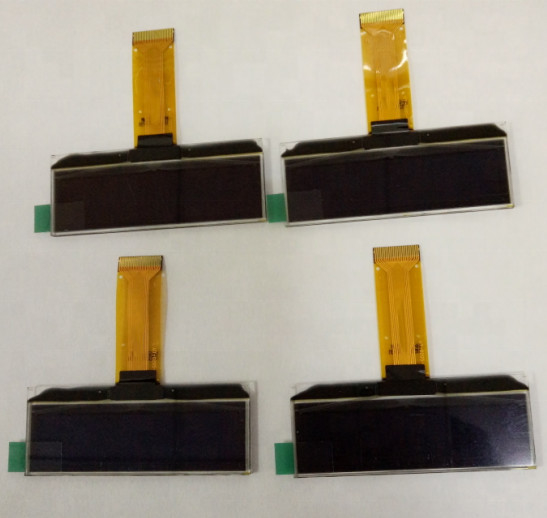

128X32 COG OLED Display Monochrome 2.23 Inch Parallel IC 24 Pins 2

-40º C~70ºC
