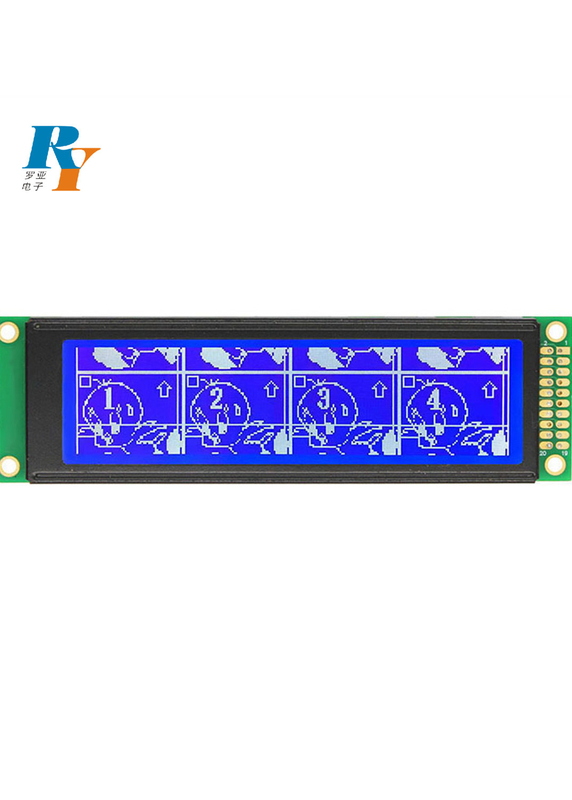

ISO STN Graphic LCD Display 5.25V Blue 256×64 Negative LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ISO Rohs |
| Model Number: | RYP25664A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| LCD Display Type: | STN | DOT Format: | 256*64 |
|---|---|---|---|
| Module Size(mm): | 184.0(W)*75.0(H)*9.2(D) | Viewing Area(mm): | 149.6(W)*43.0(H) |
| Drive IC: | LC7981 | Driving Method: | 1/64duty 1/9 Bias |
| Supply Volatge Logic: | 5.25V | Supply Voltage Driver: | 15.0V |
| Highlight: | ISO STN Graphic LCD Display,5.25V Graphic LCD Display,256×64 Negative LCD Display |
||
Product Description

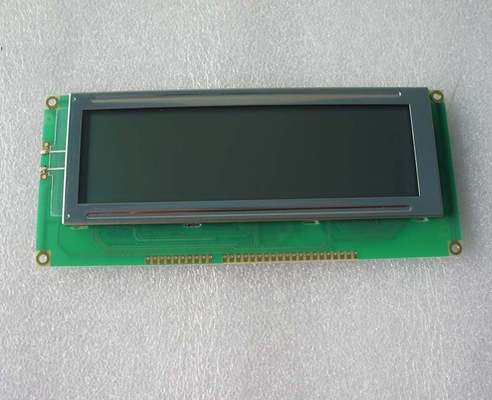

Graphic Lcd Module 5.4 Inch Stn YG 24064dots Monochrome Lcd Display With Backlight
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 256*64dots Lcd Display |
| Model No. | RYP25664A |
| Dot Format | 256*64 |
| Module Size(mm) | 184.0(W)*75.0(H)*9.2(D) |
| Viewing Area(mm) | 149.6(W)*43.0(H) |
| Dot Pitch(mm) | 0.56(W)*0.56(H) |
| Dot Size(mm) | 0.51(W)*0.51(H) |
| Driver IC | LC7981 |
| Operating Temp | 0º C~50ºC |
| Storage Temp | -10º C~60ºC |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
