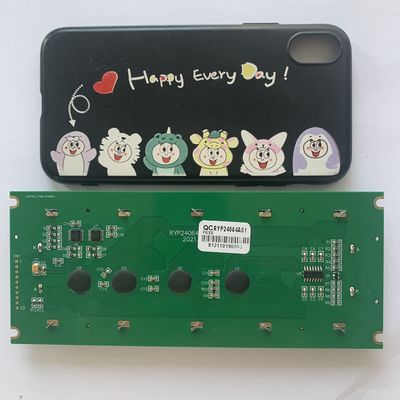

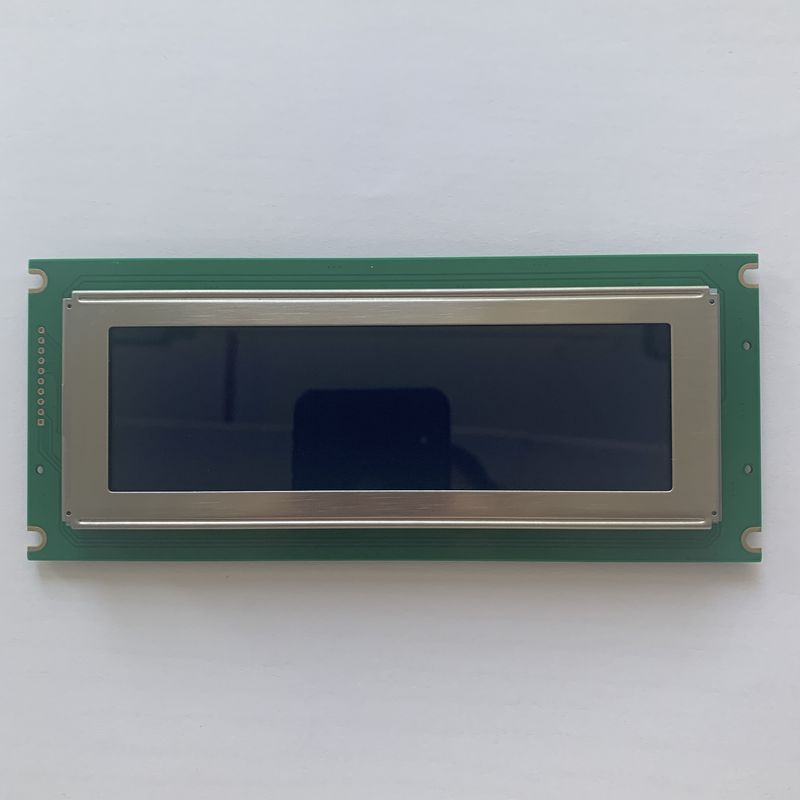

STN 240x64 Graphic LCD Module SHARP LM24008M Monochrome Negative COB
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS |
| Model Number: | RYP24064A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20K/Month |
|
Detail Information |
|||
| Product Name: | Graphic LCD 240x64 Monochrome LCM Display Module With Backlight | Display Type: | STN Blue, Transmissive, Negative |
|---|---|---|---|
| Resolution: | 240x64 | Type: | Graphic COB |
| Outline Dimensions: | 180.0X75.0X10.5mm | Viewing Direction: | 6 O'clck |
| IC: | NT7086E | Backlight: | LED White |
| Operating Temp.: | -20℃~+70℃ | Stroage Temp.: | -30℃~+80℃ |
| Number Of Pins: | 11pin | Customized: | Available,OEM ODM Welcome |
| Highlight: | SHARP LM24008M Graphic LCD Module,STN 240x64 Graphic LCD Module,COB Negative Monochrome LCD Module |
||
Product Description
100% replace SHARP LM24008M Monochrome STN Blue 240x64 Graphic LCD Module
PRODUCT DESCRIPTION
Specification
1) Driving: Duty: 1/64, Bias:1/9, Voltage of LCD=12.5V, LCM=5.0V
2) Viewing angle: 6 0' clock
3) Display mode: STN/Negative/ Transmissive/ Blue
4) Operating temp:- 20ºC~+70ºC
Storage temp.: - 30°C~+80ºC
5) Control IC: NT7086E
6) Backlight: Edge White
|
Resolution
|
240*64
|
|
Viewing Direction
|
6 O'clock
|
|
Outline Dimensions
|
180.0*65.0*12.5mm
|
|
Viewing Area
|
132.6*39.0mm
|
|
Active Area
|
127.16*33.88mm
|
|
Display mode
|
STN/Blue
|
|
Backlight
|
LED
|
|
Controller IC
|
NT7086E |
| Drive Method |
1/9bias, 1/64duty
|
| Driving Voltage | LCD=12.5V LCM=5.0V |
|
Operating temp
|
-20ºC~+70ºC
|
|
Storage temp
|
-30ºC~+80ºC
|
|
Number of pins
|
10 pin
|
