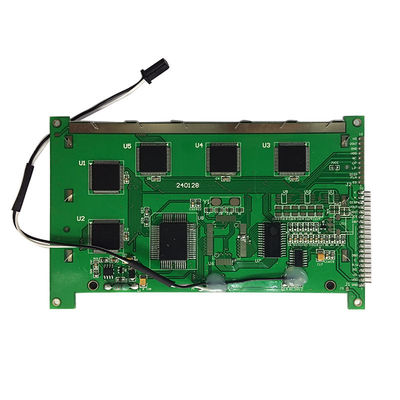

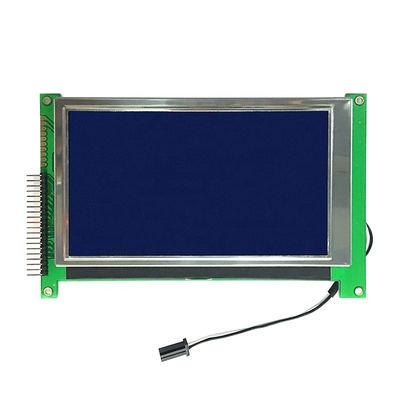

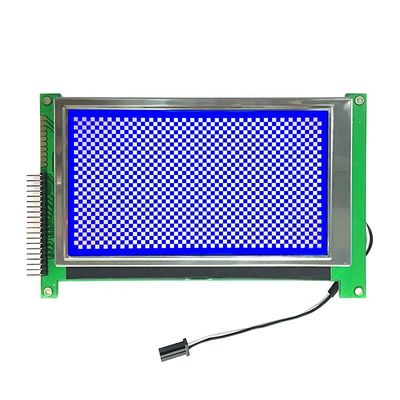

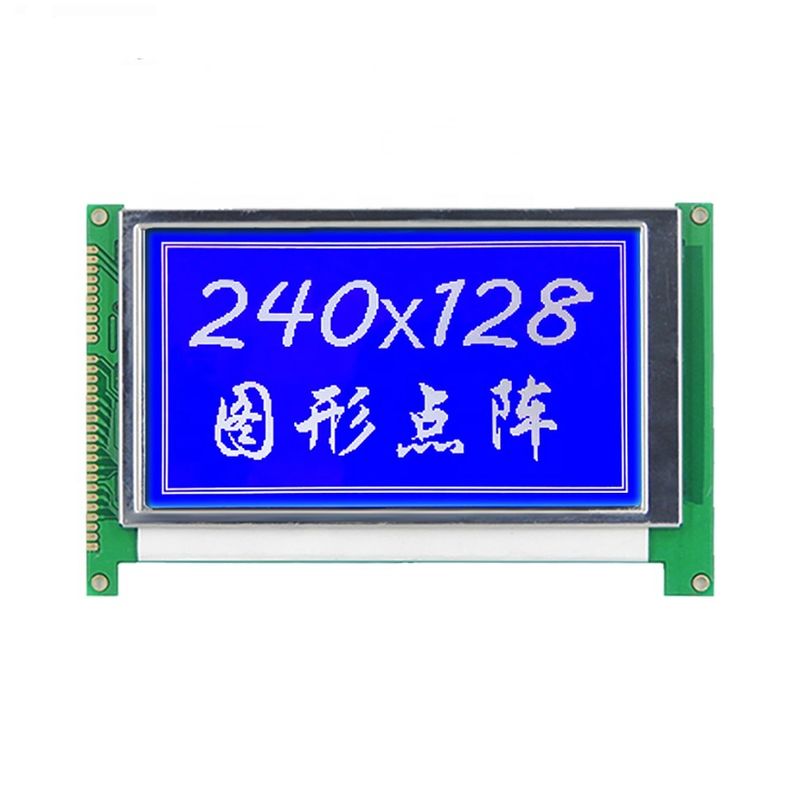

240X128 Graphic LCD Module TC6963C LC7981 Controller 5.5 Inch
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS |
| Model Number: | RYP240128G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20K/Month |
|
Detail Information |
|||
| Product Name: | 5.5'' Graphic LCD 240x128 Monochrome LCM Display Module With Backlight | Display Type: | STN Blue, Transmissive, Negative |
|---|---|---|---|
| Resolution: | 240x128 | Type: | Graphic DOT Matrix LCD |
| IC: | TC6963C/LC7981 | Driver Method: | 1/128duty |
| Viewing Direction: | 6 O'clck | Backlight: | LED White |
| Operating Temp.: | 0°C~+50°C | Stroage Temp.: | -20°C~+60°C |
| Customized: | Available,OEM ODM Welcome | ||
| Highlight: | 240X128 Graphic LCD Module,LC7981 Controller Graphic LCD Module,5.5 Inch DOT Matrix LCD Display |
||
Product Description
5.5 Inch 240X128 Graphic DOT Matrix TC6963C/LC7981 Controller LCD Display
PRODUCT DESCRIPTION
Specification
1) Driving: Duty: 1/ 128, Bias:1/9
2) Viewing angle: 6 0' clock
3) Display mode: STN/Negative/ Transmissive/ Blue
4) Operating temp:- 20ºC~+70ºC
Storage temp.: - 30°C~+80ºC
5) Control IC: T6963C/LC7981
6) Backlight: LED White
|
Resolution
|
240*128
|
|
Viewing Angle
|
6 O'clock
|
|
External dimensions
|
159.4*101.2*12.1mm
|
|
Visual area
|
123.8*69.8mm
|
|
Active Area
|
120.0*64.0mm
|
|
Controller IC
|
LC7981/T6963C
|
|
Display mode
|
STN/Negative/Transmissive/Blue
|
|
Backlight Type
|
LED White
|
|
Operating Temp
|
0°C~+50°C
|
|
Storage Temp
|
-20°C~+60°C
|
|
Number of pins
|
20 pin
|
PACKAGE
Choose the right package according to the size of the product and carry out multiple protections to ensure that the product avoids damage during transportation.
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Is the product in stock? How long production cycle?
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1weeks,Mass production for 2 weeks.
