| DOT Format: | 192X64 | Outline (mm): | 150.00*62.25*13.10mm |
|---|---|---|---|
| Backlight: | LED Yellow-Green/White | Connection: | Cog+FPC |
| Power Supply: | 5V | Interface: | Parallel |
| View Angle Range: | 6 O' Clock | Connector: | FFC-Connector |
| Controller: | Aip31107/Aip31108 | ||
| High Light: | 192X64 Dots Graphic LCD Module,4.05 Inch Graphic LCD Module,Cog FPC Lcd Monitor Module |
||

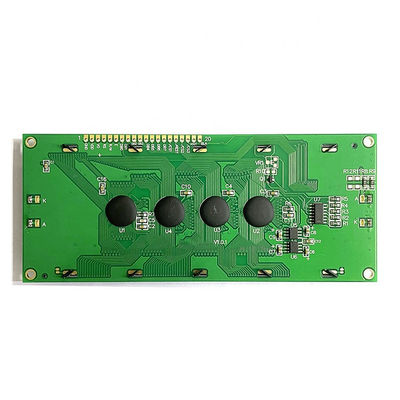

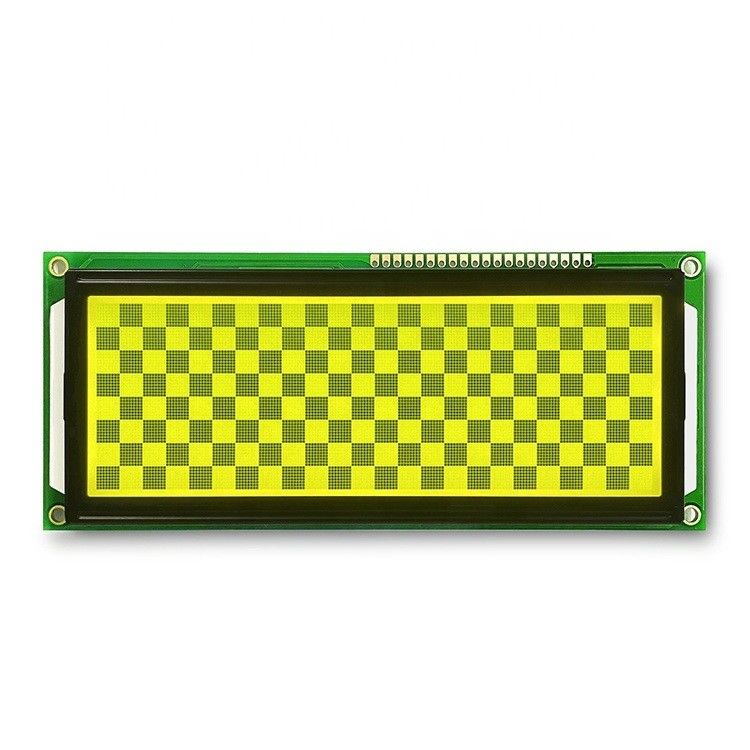

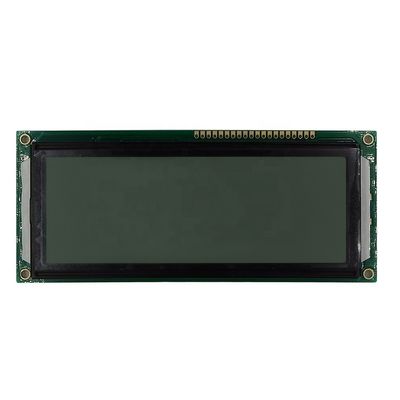

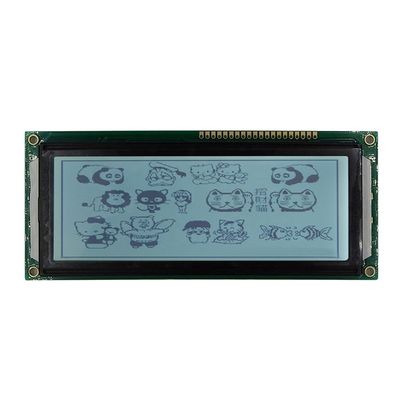

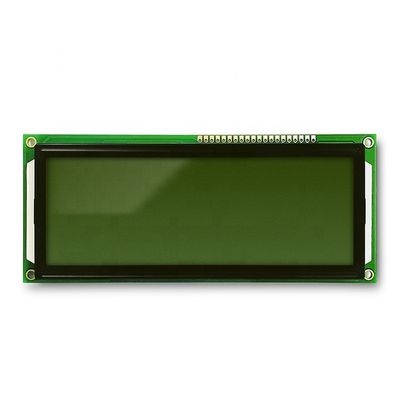

4.05inch STN 192x64 blue lcd screen display 5v graphic 19264 dot matrix module
PRODUCT DESCRIPTION
|
Resolution
|
192*64
|
|
Viewing Angle
|
6 O'clock
|
|
External dimensions
|
150.00*62.25*13.10mm
|
|
Visual Area
|
123.5*43.0mm
|
|
Active Area
|
120.92*40.28mm
|
|
Controller IC
|
AIP31107/AIP31108
|
|
Display mode
|
FSTN/Gray,STN/Yellow-green
|
|
Backlight Type
|
LED Yellow-green/White
|
|
Module Voltage
|
VDD:5V
|
|
Operating Temp
|
-20°C~+70°C
|
|
Storage Temp
|
-30°C~+80°C
|
|
Number of pins
|
20 pin
|
Graphic LCDs
Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.
Features
1. Wide variety of off the shelf sizes and resolutions
2. Most products kept in stock and can ship same day
3. Ability to display fully changeable graphics
4. Sunlight readable
5. Low power consumption
6. Fully customizable
Custom Made Project Order Flow
1. Enquiry
Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).
2. Counter drawing
We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.
3. Tooling samples
After drawing approval, tooling samples will be finished around 30 days
4. Mass production
After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply situation.
APPLICATIONS
FAQ
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Can you produce on the OEM?
A: Yes, we can.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
