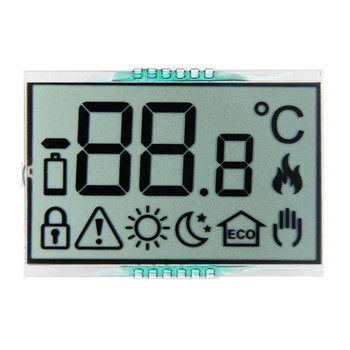

SGS FSTN 45mA VA LCD Panel Transmissive Mono 7 Segment LCD Screen RYD2119TM-01 Positive
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | SGS ROHS |
| Model Number: | RYD2119TM-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Outline (mm): | 31*26 | Display Type: | FSTN-Positive, Stn-Blue, Stn-Yg |
|---|---|---|---|
| Viewing Direction: | 6:00 | Polarizer Type: | Transmissive |
| Appearancedisplay Type: | Va | Interface: | Parallel |
| Backlight Current (Typ): | 45mA | Operating Temp.: | -20º C~70ºC |
| Storage Temp.: | -30º C~80ºC | Controller: | Zebra |
| Backlight Color: | Edge White Or Green | ||
| Highlight: | SGS FSTN 7 Segment LCD Screen,45mA Mono 7 Segment LCD Screen,RYD2119TM-01 Positive LCD Display |
||
Product Description
TN Transmissive Positive LCD Display Monochrome Segment LCD For Thermometer
PRODUCT DESCRIPTION
| Item | Description |
| Model No. | RYD2119TM-01 |
| Outline (mm) | 31*26 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN, Positive, Transmissive |
| Backlight | Edge White or Green |
| Connector | Zebra |
| Power supply | 3V |
| Operating Temp | -0º C~50ºC |
| Storage Temp | -10º C~60ºC |
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
Mono LCD Display
FEATURE
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
APPLICATION
