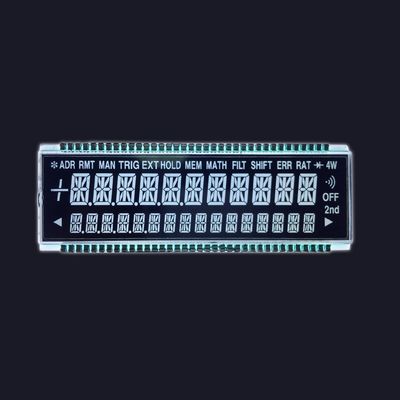

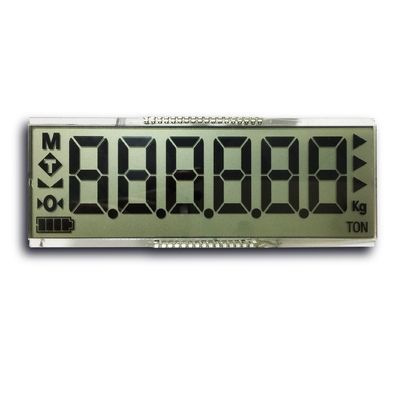

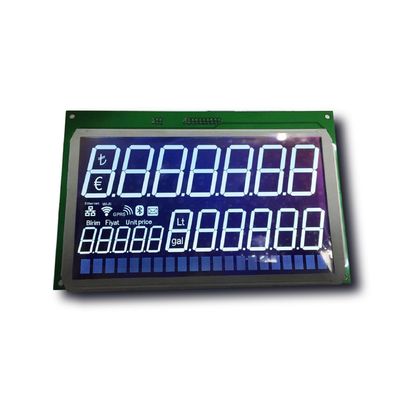

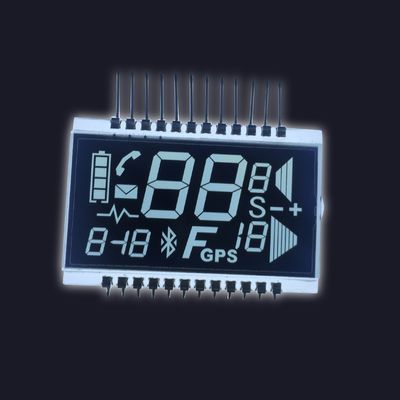

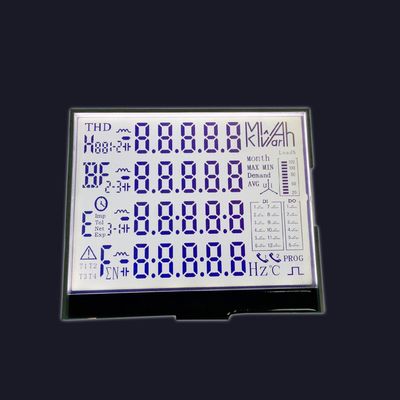

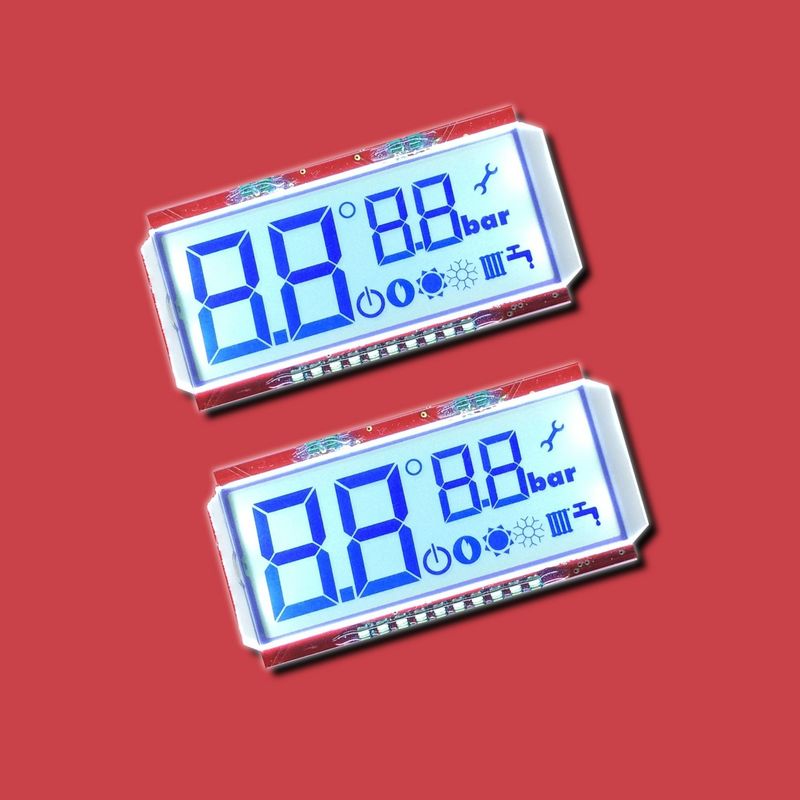

Customized Stn Segment LCD Module Small Inch Display LCD Screen

Customized Stn Segment LCD Module Small Inch Display LCD Screen
Customized Stn Segment LCD Module Small Inch Display LCD Screen Customized Stn Segment LCD Module Small Inch Display LCD Screen Customized Stn Segment LCD Module Small Inch Display LCD Screen Customized Stn Segment LCD Module Small Inch Display LCD Screen Customized Stn Segment LCD Module Small Inch Display LCD Screen Customized Stn Segment LCD Module Small Inch Display LCD Screen

Large Image :  Customized Stn Segment LCD Module Small Inch Display LCD Screen

Product Details:
Place of Origin: China
Brand Name: Royal Display
Certification: RoHS, REACH, ISO
Model Number: RY013
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 20-25 working days
Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P
Supply Ability: 300K/M
Detailed Product Description
Display Type: FSTN-Positive, Stn-Blue, Stn-Yg Backlight Type: LED, White
Operating Temp.: -20º C~70ºC Storage Temp.: -30º C~80ºC
LCD Mode: TN STN FSTN CSTN VAoptional Display Mode: Reflective/transflective/transmissive Positve Or Negative

Customized TN VA module small inch display stn lcd panel

1. Typical Applications:

Industrial Instruments,meter for measuring electricity , Clusters, Car Radios, Air conditioner, Price Tag, Printer, Fax, etc

2. Features:

Transmissive, Transflective and Reflective Mode

Duty Ratio: 1:1 to 1:9

Wide Operation & Storage temperature range

Low power consumption

High reliability

Royal Display Customized All Size LCD Display Panel



PRODUCT DETAILS

Item Dimension Unit
Module dimension 188.0 x 148.0 x 7.9 mm
View area 130.56 x 70.0 mm
View area 62.23 x 22.86 mm
Active area 120.22 x 60.0 mm
Active area 54.87 x 18.0 mm
LCD type STN Negative, Blue Transmissive
(In LCD production, It will occur slightly color difference. We
can only guarantee the same color in the same batch.)

Drive Method 1/4 DUTY,1/3BIAS
View direction 6 O'clock
Backlight Type LED, White





OUR SERVICE ADVANTAGES

1. Small order would be accepted.

2. Mass production lead time would be guaranteed.

3. Each order will have 0.2%-0.5% spare.

4. Even customers do not have a cooperation with us, we also can provide technical services.

5. If mass production has any quality problem, customer can return it.





PRODUCTION LINES

Customized Stn Segment LCD Module Small Inch Display LCD Screen 0







APPLICATION



Customized Stn Segment LCD Module Small Inch Display LCD Screen 1



FAQ:



Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.



Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.



Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks



Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
