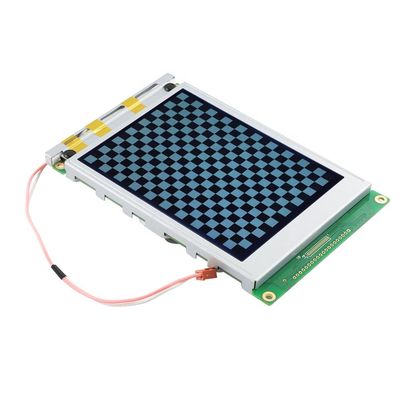

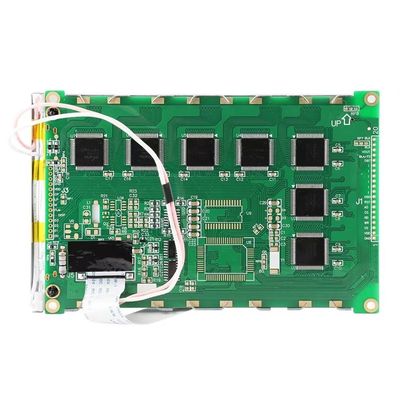

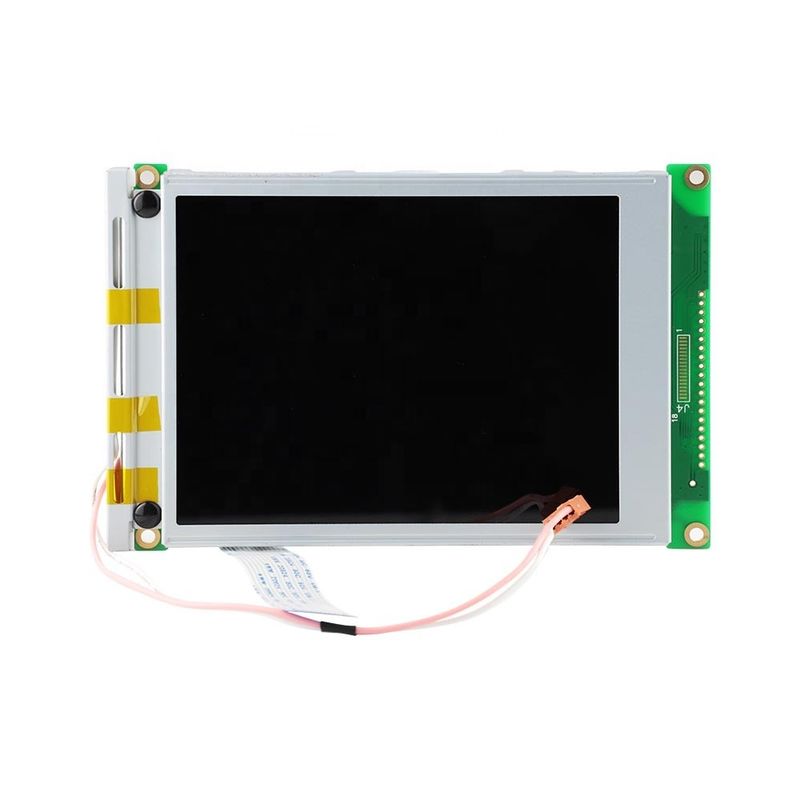

320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen

320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen
320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen 320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen 320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen

Large Image :  320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: ROHS
Model Number: RYP320240A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10K/Month
Detailed Product Description
Product Name: 5.7'' Graphic LCD 320x240 Monochrome LCM Display Module With Backlight Type: Graphic COB LCD Module
Display Type: FSTN/B-W/Negative/Transmissive Resolution: 320x240
Viewing Direction: 6 O'clck IC: NT7701&NT7709
Backlight: White CCFL Operating Temp.: -20℃~+70℃
Stroage Temp.: -30℃~+80℃ Customized: Available,OEM ODM Welcome
High Light:

320x240 Dots LCD Backlight Module

,

5.7in CCFL LCD Backlight Module

,

NT7709 Graphic LCD Screen

5.7 Inch Custom 320*240dots CCFL LCD Backlight LCD Module Graphic Screen



PRODUCT DESCRIPTION

Specification
1) Driving: Duty: 1/240, Bias:1/16, VLCD: 27V, VDD: 5.0V
2) Viewing angle: 6 0' clock
3) Display mode: FSTN/B-W/Negative/Transmissive
4) Operating temp:- 20ºC~+70ºC
Storage temp.: - 30°C~+80ºC
5) Control IC: NT7701&NT7709

6) Backlight: White CCFL

RYP320240A is a STN monochrome Graphic 320x240 LCD module display which is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch, 5V power supply and build in negative voltage generator and temperature compensation optional and touch panel optional.



Item Description
Product Name 320x240 LCD Module
Model No. RYP320240A
Dot Format 320x240
Outline (mm) 160*109*12.4(MAX)mm
Active Area(mm) 115.17×86.37mm
Display Mode FSTN/B-W/Negative/Transmissive
Duty 1/240 duty, 1/16 bias
Driver IC T6963C
Viewing Direction 6:00
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC

320x240 Dots 5.7in CCFL LCD Backlight Module NT7709 Graphic LCD Screen 0


OUR ADVANTAGES

Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty

OEM/ODM and customization services available, Professional R&D team and overseas sales team

100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks

Products widely used in instruments and handheld devices, and the medical and automotive industries
