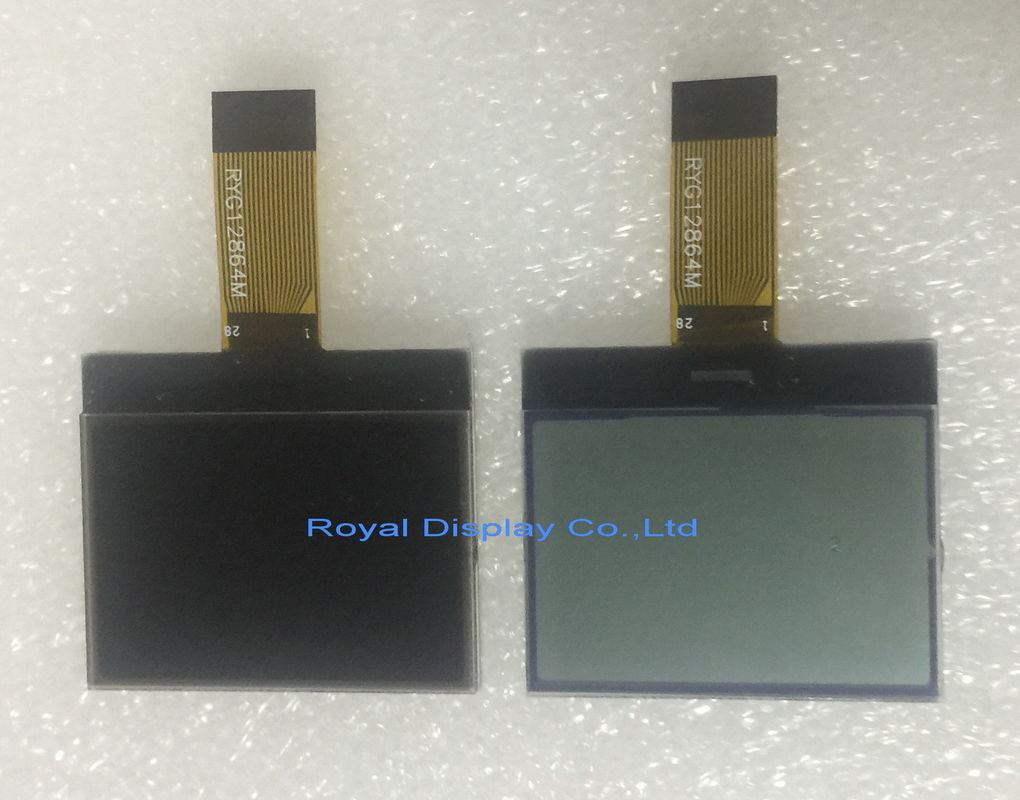

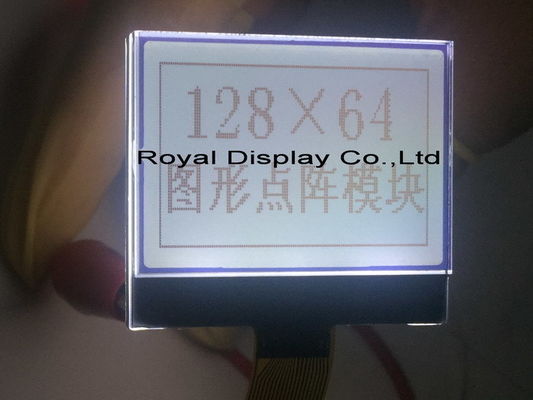

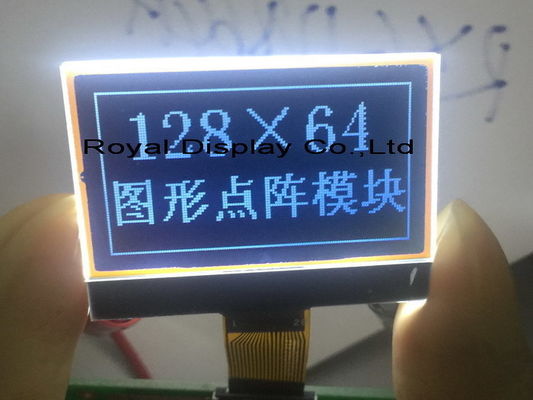

FFC Connector LCM Display Cog LCD Module 128x64 Dots STN Gray
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYG12864M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 128x64 | IC Package: | Cog |
|---|---|---|---|
| Backlight: | Black On White | Display Type: | FSTN |
| Power Supply: | 3V | Interface: | Parallel |
| View Angle Range: | No | Connector: | FFC-Connector |
| Viewing Direction: | 12:00 | Operating Temp.: | -20º C~70ºC |
| Storage Temp.: | -30º C~80ºC | ||
| Highlight: | FFC Connector Cog LCD Module,LCM Display Cog LCD Module,128x64 Dots Lcd Monitor Module |
||
Product Description
COG 128*64 Dots LCM Display LCD Module for Industrial Controller
Product Description
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Our Advantages
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
