Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 128x64 | Outline (mm): | 135X65 |
|---|---|---|---|
| IC Package: | Cog | Backlight Color: | Blue |
| Display Type: | FSTN | Power Supply: | 3.3V |
| Interface: | Parallel | View Angle Range: | No |
| Connector: | FFC-Connector | Viewing Direction: | 6:00 |
| High Light: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |
||

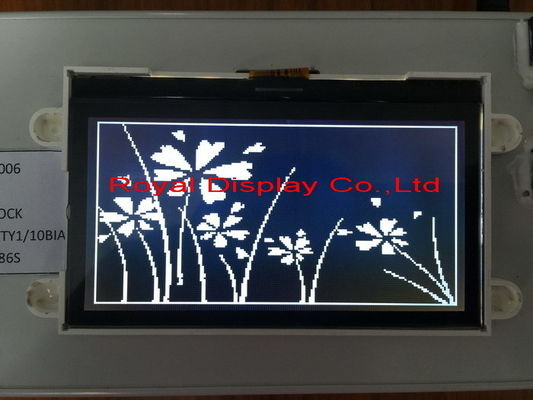

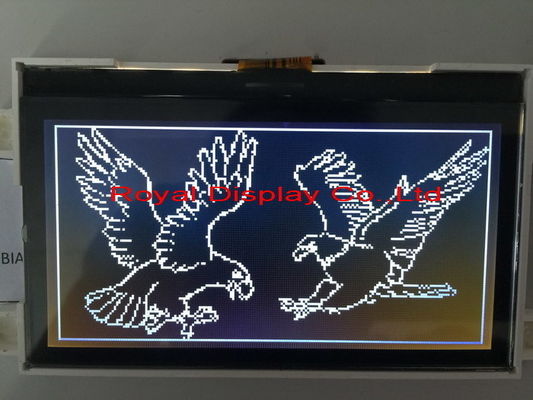

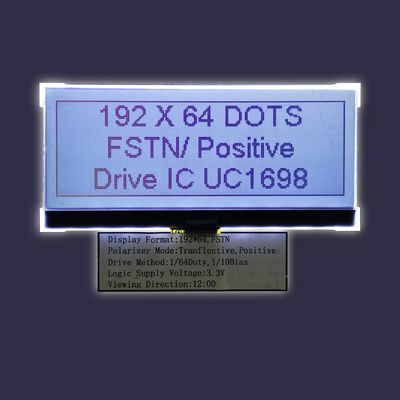

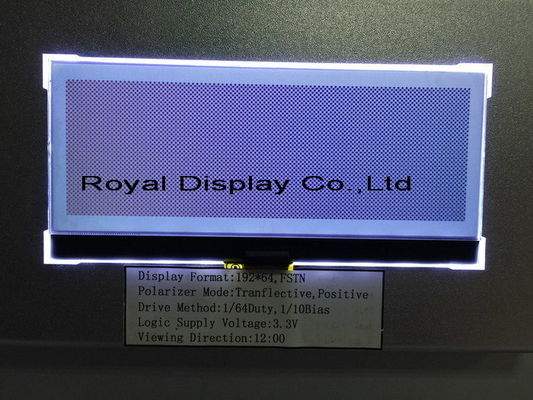

Positive Transflective Custom LCD Display In Stock 192x64 Resolution
Product Description
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 192x64dots Graphic LCD Module |
| Model No. | RY19264 |
| Dot Format | 192x64 |
| Outline (mm) | 135*65 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7586S |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
With per-pixel control available, almost any monochrome image can be drawn on the display. With the many possibilities this level of control offers, Graphic LCDs can be found in products ranging from handheld gaming devices to industrial consoles. Like character LCDs, graphic LCDs are available in TN, STN, and FSTN options with positive and negative images. The polarizers come in Reflective, Transmissive, and Transflective types and are available in a wide range of colors.
Parallel and Serial interface options make operation no more difficult than interfacing with an 8-bit microcontroller. These displays come with user controlled contrast meaning they can be used in a wide range of settings and the display can be adjusted to ensure optimal optical performance. Many displays also have temperature compensation circuitry to maintain contrast as the ambient temperature changes. All of this makes graphic LCDs a versatile and rugged means of adding graphics to a design.
COMPANY STRUCTURE
FAQ:
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
