Product Name: | 5.1'' Graphic LCD 240x128 Monochrome LCM Display Module With Backlight | Display Type: | STN Blue, Transmissive, Negative |
---|---|---|---|
Resolution: | 240x128 | Type: | Graphic COB |
Driver Method: | 1/128duty | Viewing Direction: | 6 O'clck |
IC: | T6963C | Backlight: | LED White |
Operating Temp.: | -20℃~+70℃ | Stroage Temp.: | -30℃~+80℃ |
Customized: | Available,OEM ODM Welcome | ||
Highlight: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |

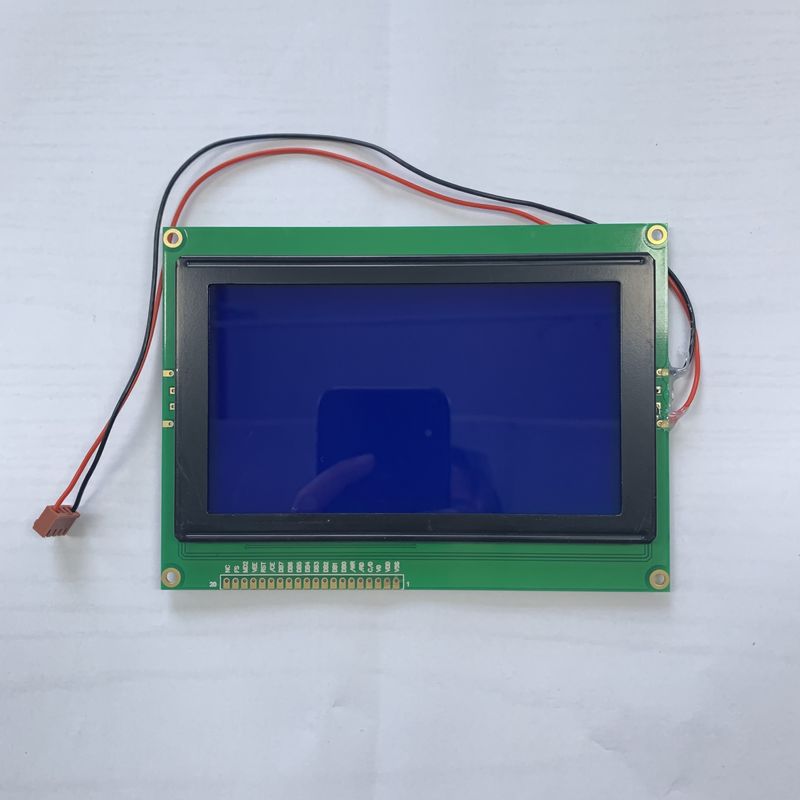

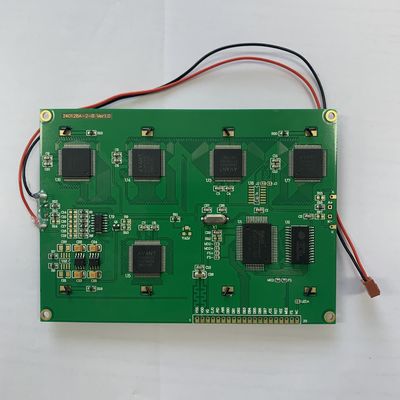

5.1 Inch Graphic 240*128 Dots LCD Display Module with T6963 Controller IC
PRODUCT DESCRIPTION
Specification
1) Driving: Duty: 1/ 128, Bias:1/16, VLCD:17.5V, VDD:5.0V
2) Viewing angle: 6 0' clock
3) Display mode: STN/Negative/ Transmissive/ Blue
4) Operating temp:- 20ºC~+70ºC
Storage temp.: - 30°C~+80ºC
5) Control IC: T6963C (or compatible)
6) Backlight: Edge White
Item | Description |
Product Name | 240x128 LCD Module |
Model No. | RYP240128A |
Dot Format | 240x128 |
Outline (mm) | 144.0*104.0*14.3(MAX)mm |
Active Area(mm) | 107.98×57.58mm |
Display Mode | STN Blue |
Duty | 1/128, 1/16 bias |
Driver IC | T6963C |
Viewing Direction | 6:00 |
Operating Temp | -20º C~70ºC |
Storage Temp | -30º C~80ºC |
