Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 128 X 64 | Outline (mm): | 73.0 × 41.86 × 2.05 |
|---|---|---|---|
| IC Package: | COG | Controller IC: | SSD1306 |
| Backlight Color: | Monochrome (Yellow) | Viewing Direction: | 6:00 |
| Connector: | FFC-Connector | ||
| Highlight: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |
||

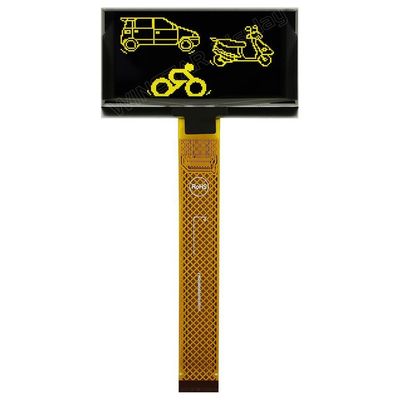

2.7'' 128x64 Black Graphic OLED Display LCD Module |
Module size: 73.0 × 41.86 × 2.05
Driver: SSD1306
| 1 | Model Number | RYO12864 |
| 2 | Resolution | 128 x 64 |
| 3 | Display color | Monochrome (Yellow) |
| 4 | Controller IC | SSD1306 |
| 5 | Outline Dimensions | 73.0 × 41.86 × 2.05 |
| 6 | Active Area | 61.41 × 30.69 |
| 8 | Requirements On Environmentall Protection | ROHS |
| 9 | Operating Temp. | -20°C~+70°C |
| 10 | Storage Temp. | -30°C~+80°C |
MORE INFORMATION ABOUT OLED DISPLAY
2.7 inch OLED Arduino is very popular application for the 2.7 inch OLED displays, it is also known for 2.7 inch OLED I2C Display, 2.7 inch OLED SPI Display or 0.96 inch OLED 128×64 SPI Display. If need Arduino 2.7 inch OLED I2C example, you can buy the I2C 2.7 inch OLED Display Module to test at first, you can check the 2.7 inch OLED datasheet above, and we can provide the 2.7 inch OLED I2C Arduino library for your projects.
