128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display

128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display
128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display 128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display 128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display 128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display

Large Image :  128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYG1286407
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable

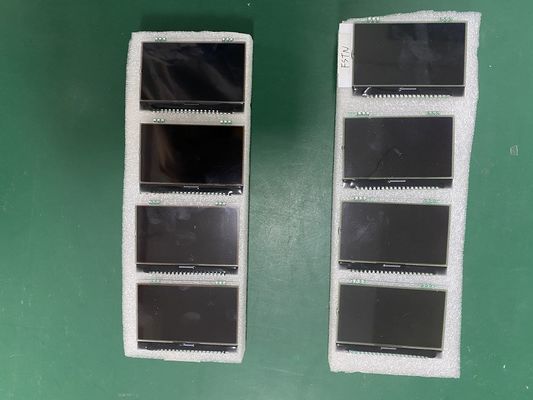

Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128X64 Outline (mm): 75.8X47.96
IC Package: Cog Display Type: FSTN
Power Supply: 3.3V Interface: Parallel
View Angle Range: No Connector: FFC-Connector
Viewing Direction: 12:00
High Light:

Stn Graphic LCD Graphic Module

,

ROHS FSTN Graphic LCD Module

,

FPC FSTN Lcd Display Module

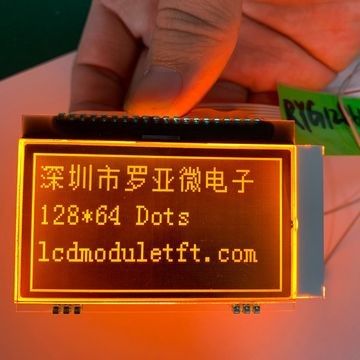

128x64dots FSTN ST7565P Transmissive LCD Module Display 100% replace WINSTAR WDO0066-TFH_#06


Product Description

1. Display Format 128x64 dots
2. 10.2V LCD Driving Voltage
3. Ultra high contrast, Orange LED backlight, 3.3V, 60mA
4. 3.3V power supply
5. Transmissive FSTN-Negative display
6. Custom size



Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG1286407-GFVWON
Dot Format(dot) 128x64
Outline Dimension(mm) 75.8x47.96
VA Size(mm) 64x35.5
AA Size( mm) 60.79x32.95
Viewing Angle 6 O' clock
LCD Mode FSTN-Negative
Backlight Orange LED backlight
Driver IC ST7565P
Power supply 3.3V
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C





Graphic LCD Display



1>Customized according to client's requirement

2>Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies

3>Available for different modes such as yellow-green, blue and black color.

4>Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.

Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..



128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display 0

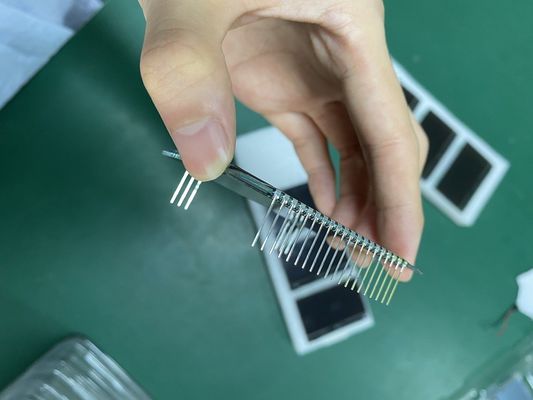

ACCESSORIES

Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!



128X64dots 100% Replace Winstar Wdo0066FSTN St7565p Transmissive LCD Module Display 1



WARRANTY


Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
