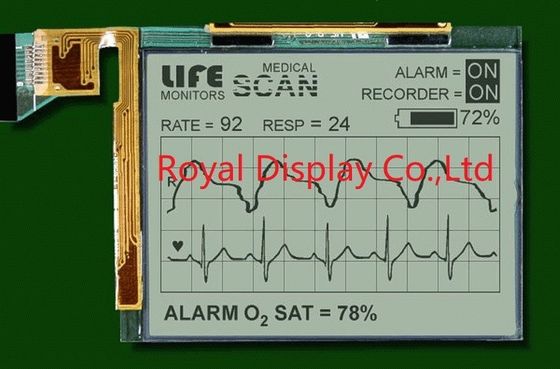

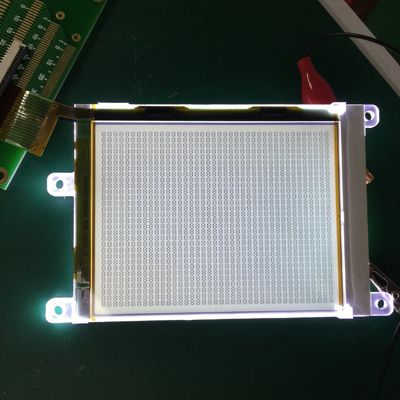

Custom Standard FSTN 320X240 Dots Graphic LCD Module with White Backlight Transflective Positive
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYG320240D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 320*240 | IC Package: | Cog |
|---|---|---|---|
| Display Type: | FSTN | Power Supply: | 3V |
| Interface: | Parallel | View Angle Range: | No |
| Connector: | FFC-Connector | Viewing Direction: | 12:00 |
| Highlight: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |
||
Product Description
320*240 dots FSTN lcd module
Product Description
1. 320x240dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 320x240 dots Graphic LCD Module |
| Model No. | RYG320240D |
| Dot Format | 320x240 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN |
| Polarzier Mode | Transflective,Positive |
| Driver IC | NT7701&NT7709 |
| Power supply | 3.0V |
| Interface | LVDS LCD |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -30º C~80ºC |
OUR SERVICE ADVANTAGES
1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016, ISO9001:2015, REACH certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.
APPLICATION
About Compnay
• Over 10-year expert in LCD modules
• 20,000m² own factory; 12-month product warranty
• OEM/ODM and customization services available
• Professional R&D team and overseas sales team
• 100% inspection before shipment; fast delivery time
• Items carry RoHS, CE and SGS marks
• Products widely used in instruments and handheld
