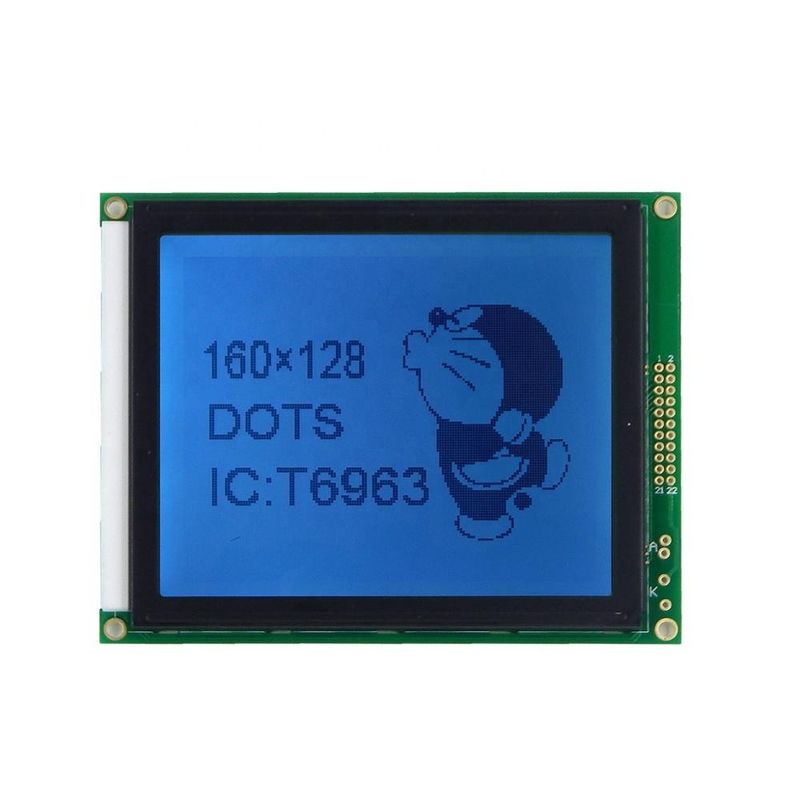

160128 Graphic LCD Module T6963c 5V 22 Pin 160X128 LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS |
| Model Number: | RYP160128A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50K/Month |
|
Detail Information |
|||
| Display Type: | STN Blue, Transmissive, Negative | Type: | COB |
|---|---|---|---|
| Driver Method: | 1/128duty | Viewing Direction: | 6 O'clck |
| IC: | T6963C | Backlight: | LED |
| Operating Temp.: | -20℃~+70℃ | Stroage Temp.: | -30℃~+80℃ |
| Customized: | Available,OEM ODM Welcome | ||
| Highlight: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |
||
Product Description

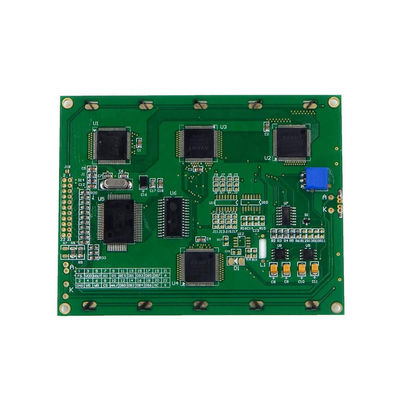

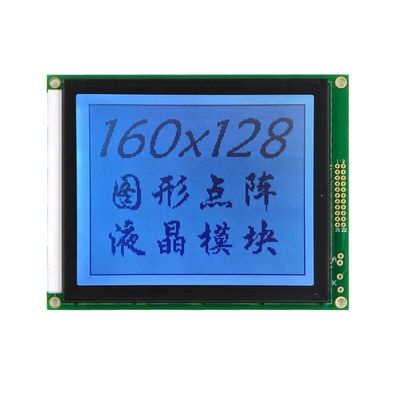

160128 Graphic LCD Module T6963c 5V 22 Pin 160X128 LCD Display
PRODUCT DESCRIPTION
Specification
1) Driving: Duty: 1/ 128, Bias:1/12, VLCD:13.6V, VDD:5.0V
2) Viewing angle: 6 0' clock
3) Display mode: STN/Negative/ Transmissive/ Blue
4) Operating temp:- 20ºC~+70ºC
Storage temp.: - 30°C~+80ºC
5) Control IC: T6963C (or compatible)
6) Backlight: Edge White
| Item | Description |
| Product Name | 160x128 LCD Module |
| Model No. | RYP160128A |
| Dot Format | 160x128 |
| Outline (mm) | 129.0*102.0*13.0mm |
| Active Area(mm) | 38.44(H) x 66.9 (V) |
| Display Mode | STN Blue |
| Duty | 1/128 |
| Driver IC | T6963C |
| Viewing Direction | 6:00 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Royal Display Co.Ltd, specializing in the design, development and production of LCD display module full scheme for more than 10years.
Our company's products include two series: standard and custom-made products, related to: Segment LCD display, Character LCD display, Graphic LCD display, COG LCD display, TFT color display, OLED display, 7 segment LED display, covers TN, HTN, STN, FSTN, TFT and other film types, fusion of COG, TAB, COB, SMT and other process with the capability of 300K different kinds of LCM/LCD per month.
