| DOT Format: | 160X160 | Outline (mm): | 41*35 |
|---|---|---|---|
| IC Package: | Cog | Display Type: | FSTN |
| Power Supply: | 3V | Interface: | Parallel |
| View Angle Range: | No | Connector: | FFC-Connector |
| Viewing Direction: | 12:00 | ||
| Highlight: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |
||

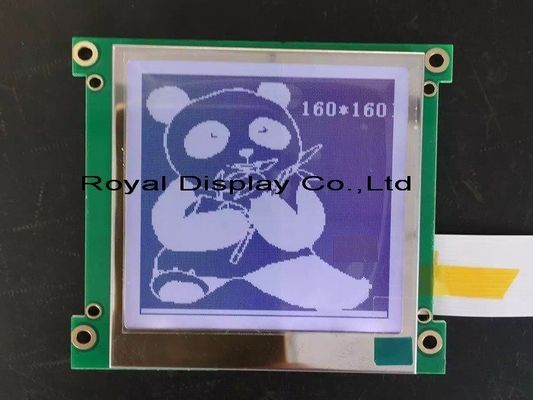

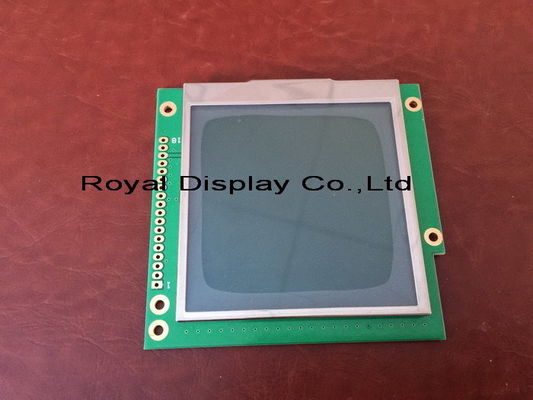

White on Blue ST75665R Controller 128x64 Serial Graphic LCD Display Module
PRODUCT DESCRIPTION
1. 160x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 160x160dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 160x160 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1698 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
ENTERPRISE HONOR
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
OUR ADVANTAGES
1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.
APPLICATION
