Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 160X160 | Outline (mm): | 41*35 |
|---|---|---|---|
| Controller: | UC1698 | Backlight Color: | White Color |
| IC Package: | Cog | Connection: | FPC-Soldering |
| Operating Temp.: | -20°C~+70°C | Storage Temp.: | -30°C~+80°C |
| Display Type: | FSTN-Positive | Power Supply: | 3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Connector: | FPC | Viewing Direction: | 12:00 |
| High Light: | Parallel FSTN Graphic LCD Module,FPC FSTN Graphic LCD Module,UC1698 COB Graphic LCD Display |
||
| Item | Description |
| Product Name | 160x160dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 160x160 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1698 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |

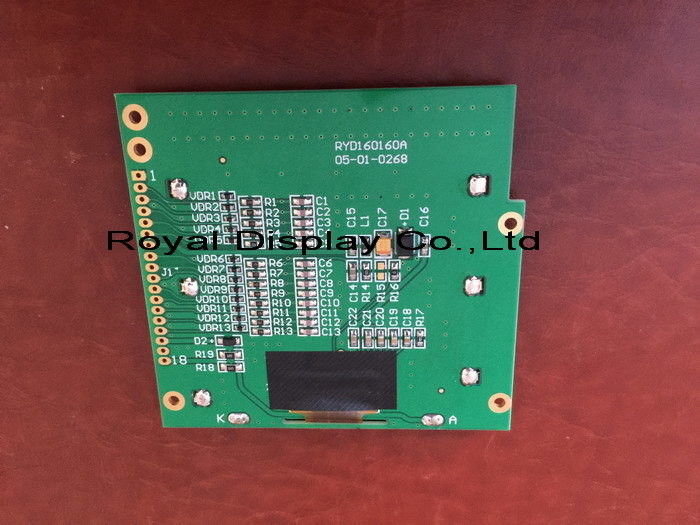

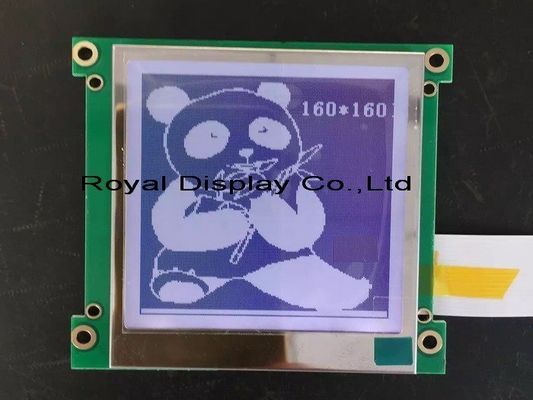

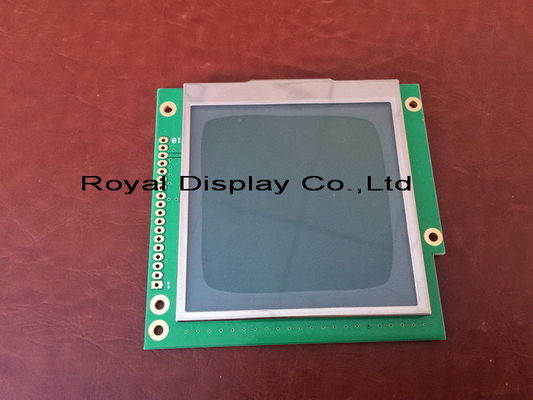

RYD160160A is 3"160x160 lcd display controller uc1698 cog module,8-bit parallel interface,fstn lcd,3v,wide temp.
OUR SERVICE ADVANTAGES
1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3, Payment Terms: T/T, Western Union.
4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5, Service: Best after-sales service to ensure satisfaction from customers.
6, Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air
7, Warranty: Usually, product warranty for one year.
8, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
Graphic LCD Display
1. Customized according to client's requirement
2. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies
3. Available for different modes such as yellow-green, blue and black color.
4. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.
Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..
LED professional manufacturer ROYAL DISPLAY with over 10 years experience in led field,
we do believe we can become your reliable supplier!
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ:
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
