Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 240X128 | Outline (mm): | 78*47 |
|---|---|---|---|
| Display Type: | FSTN-LCD Grey | Backlight Color: | White Color |
| Connection: | FPC-Soldering | Power Supply: | 3V |
| View Angle Range: | 6 O' Clock | Connector: | FFC-Connector |
| Operating Temp.: | -20º C~70ºC | Storage Temp.: | -30º C~80ºC |
| Highlight: | FPC Soldering Lcd Backlight Module,STN YG Lcd Backlight Module,FSTN Positive 320x240 Lcd Module |
||

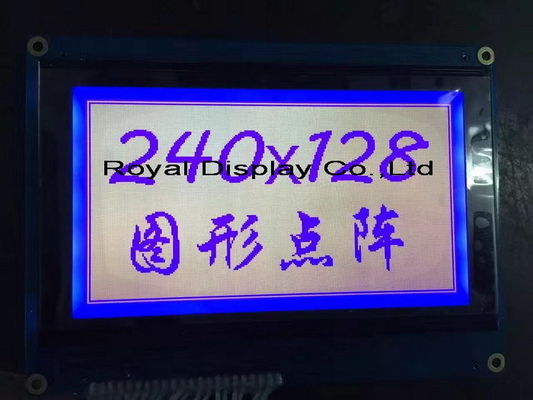

High resolution temperature controller LCD Display LCD Module
PRODUCT DESCRIPTION
1. 240x128dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
|
Graphic LCD Display
Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.
1. Customized according to client's requirement
2. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies
3. Available for different modes such as yellow-green, blue and black color.
4. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.
Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..
FEATURES
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
