Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 128*64 | Outline (mm): | 41*35 |
|---|---|---|---|
| Controller: | St7565r | Backlight Color: | White Color |
| IC Package: | Cog | Connection: | FPC-Soldering |
| Operating Temp.: | -20°C~+70°C | Storage Temp.: | -30°C~+80°C |
| Display Type: | FSTN | Power Supply: | 3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Backlight Current (Typ): | 45mA | View Angle Range: | No |
| Connector: | FPC | Appearance: | Black On White |
| Viewing Direction: | 12:00 | ||
| High Light: | St7565r FSTN Graphic LCD Module,45mA Cog Graphic LCD Module,ST7565R FPC Cog Lcd Module |
||
| Item | Description |

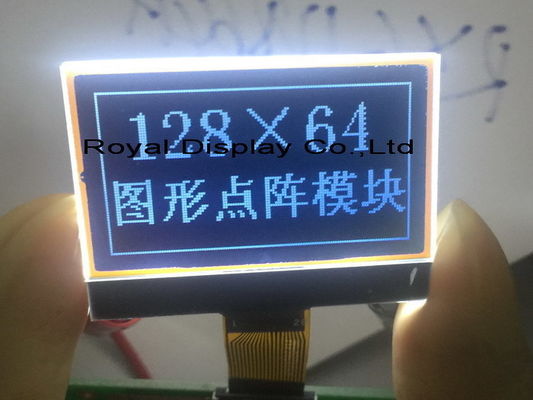

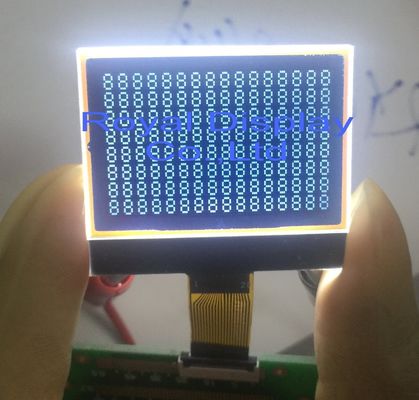

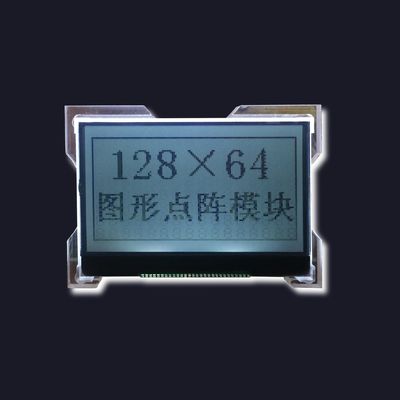

| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |

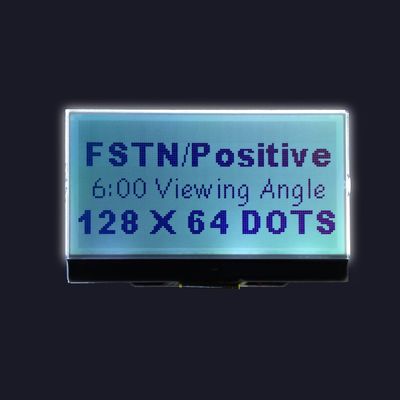

| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
LED professional manufacturer ROYAL DISPLAY with over 10 years experience in led field,
we do believe we can become your reliable supplier!
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
