| Outline (mm): | 41*35 | Backlight Color: | White Color |
|---|---|---|---|
| Connection: | FPC-Soldering | Power Supply: | 3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| View Angle Range: | 12 O' Clock | Connector: | FFC-Connector |
| Appearance: | Black On White | Operating Temp.: | -20º C~70ºC |
| Storage Temp.: | -30º C~80ºC | ||
| High Light: | St75665r Controller Graphic LCD Display,RoHS FSTN Graphic LCD Display,3V Parallel 128X64 LCD Module |
||

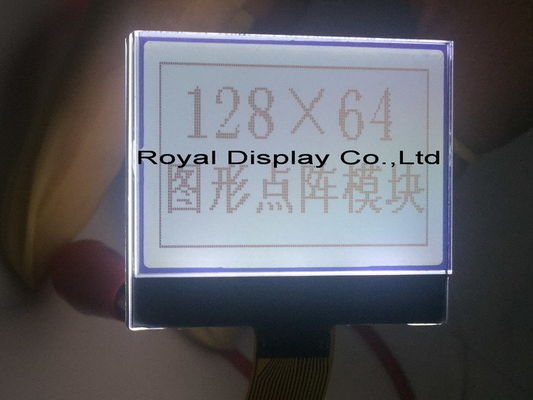

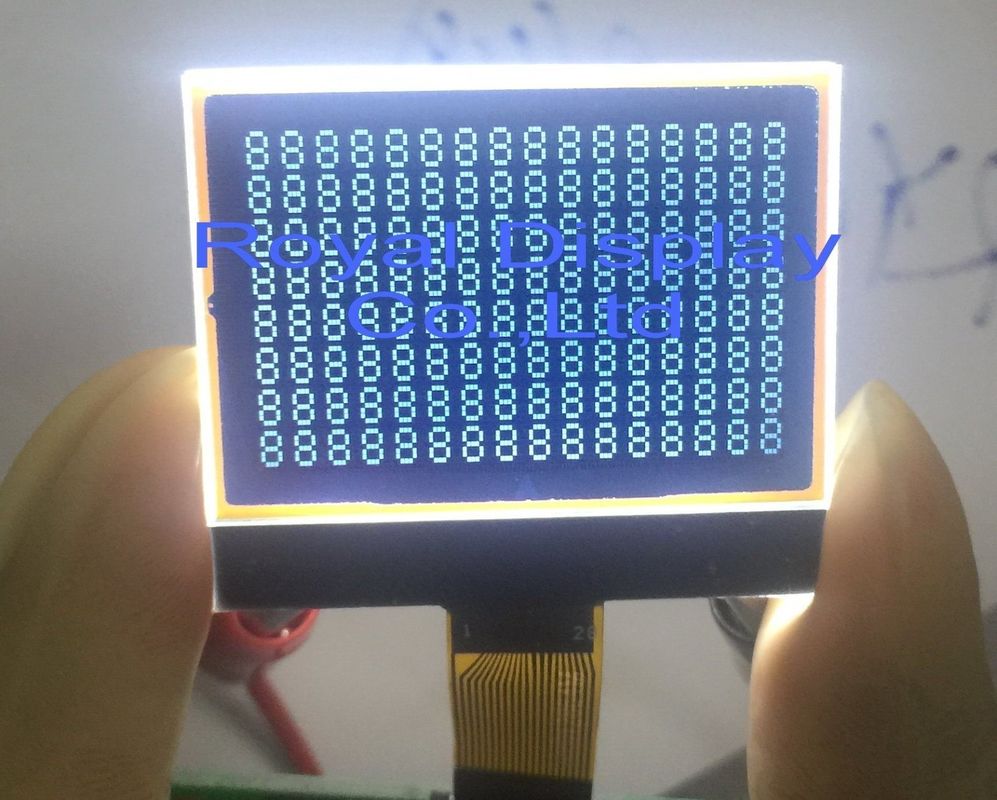

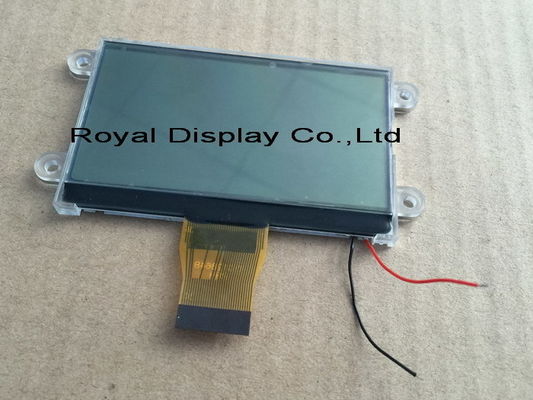

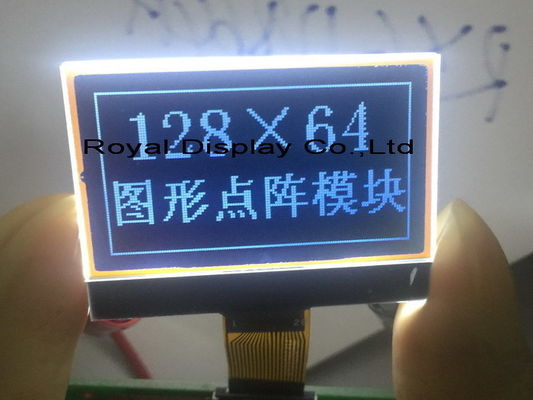

128x64 FSTN ST7565R COG Graphic FPC Positive Monochrome LCD Display Module
PRODUCT DESCRIPTION
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
OUR SERVICE ADVANTAGES
1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.
4. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
5. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
6. Payment Terms: T/T, Western Union,L/C, PayPal
7. If mass production has any quality problem, customer can return it.
8. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
FEATURE
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
