Product Details:
Payment & Shipping Terms:
|

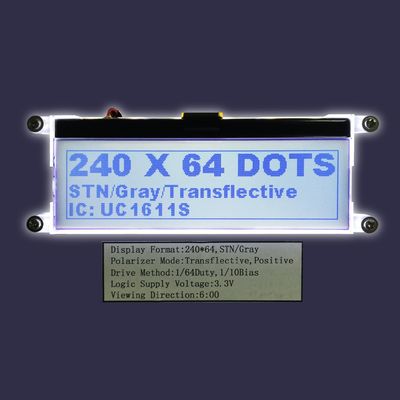

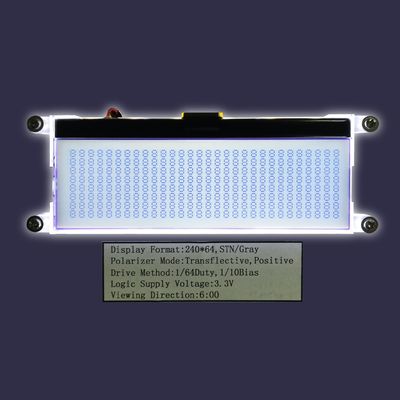

| DOT Format: | 240x64 | Outline (mm): | 41*35 |
|---|---|---|---|
| Controller: | UC1611s | Backlight Color: | White Backlight |
| IC Package: | COB | Connection: | FPC-Soldering |
| Display Type: | FSTN-Positive, STN-Gray | Power Supply: | 5V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Connector: | FPC | Viewing Direction: | 12:00 |
| Operating Temp.: | -20°C~+70°C | Storage Temp.: | -30°C~+80°C |
| High Light: | YG Stn Gray Positive LCD Display,ST7565R Parallel Positive LCD Display,COB FPC Lcd Graphic Module |
||
| Item | Description |
| Product Name | 128x64 dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
OUR SERVICE ADVANTAGES
1,It can help customers solve hardware and software solutions, so that customers stand at the commanding height of the market for the first time.
2,All technical indexes are equal to or higher than those of other companies
3,Based on strong R & D force and advanced equipment, the product has high stability and reliability
4,Personalized service, according to customer requirements.
5,Service oriented, quality first.
ABOUT US
• Over 10-year expert in LCD modules
• 20,000m² own factory; 12-month product warranty
• OEM/ODM and customization services available
• Professional R&D team and overseas sales team
• 100% inspection before shipment; fast delivery time
• Items carry RoHS, CE and SGS marks
• Products widely used in instruments and handheld
FAQ:
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
