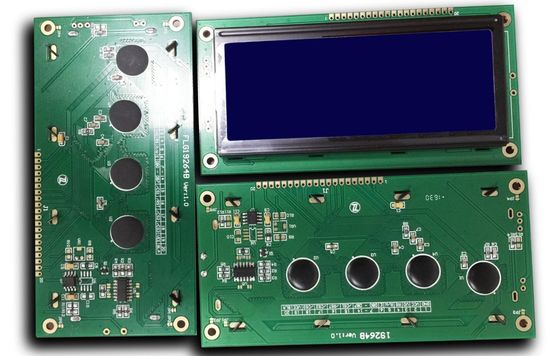

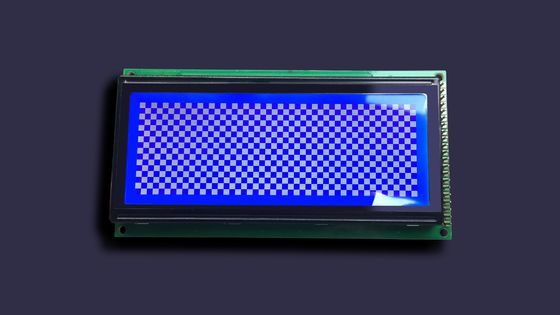

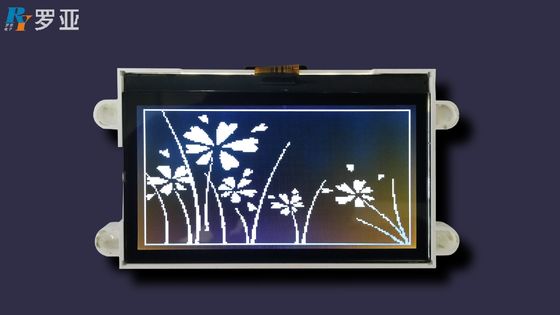

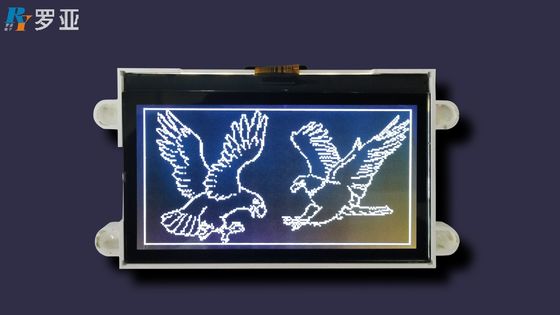

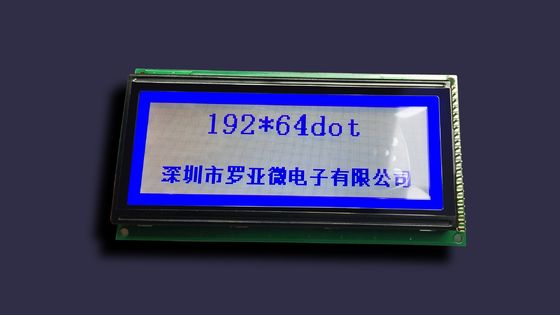

192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display

192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display
192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display

Large Image :  192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY19264
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, Western Union, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
Resolution: 192X64 Outline (mm): 135X65
Backlight Color: White Color Connection: FPC-Soldering
Display Type: FSTN Power Supply: 3.3V
Interface: Parallel Sunlight Readable: Yes
View Angle Range: 6 O' Clock Connector: FFC-Connector

Low power consumption STN-Gray white LED backlight Module LCD

PRODUCT DESCRIPTION
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 192x64dots Graphic LCD Module
Model No. RY19264
Dot Format 192x64
Outline (mm) 135*65
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7586S
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC





Graphic LCDs

Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.

Features

1. Wide variety of off the shelf sizes and resolutions

2. Most products kept in stock and can ship same day

3. Ability to display fully changeable graphics

4. Sunlight readable

5. Low power consumption

6. Fully customizable





OUR FACTORY



192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 0



192*64dots Graphic Low Power Consumption Stn-Gray White LED Backlight Module LCD Display 1



FAQ



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q: Are you open to OEM processing?

A: Yes, we can OEM.



Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

Q: Do you provide Customize product ?
A: Yes, we could offer the customize the luminunce/tickness/Cover glass size and any interface.

Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.

Q: Can you produce on the OEM?
A: Yes, we can.



Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
