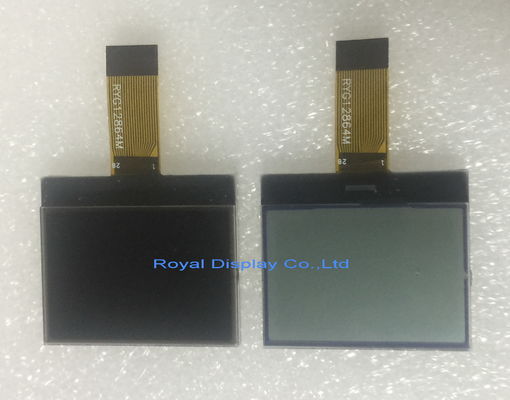

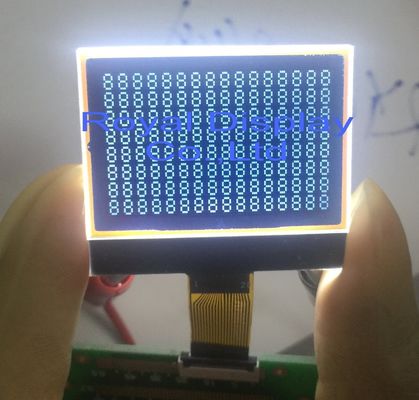

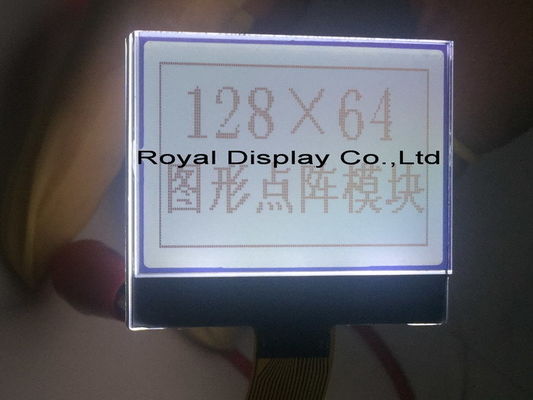

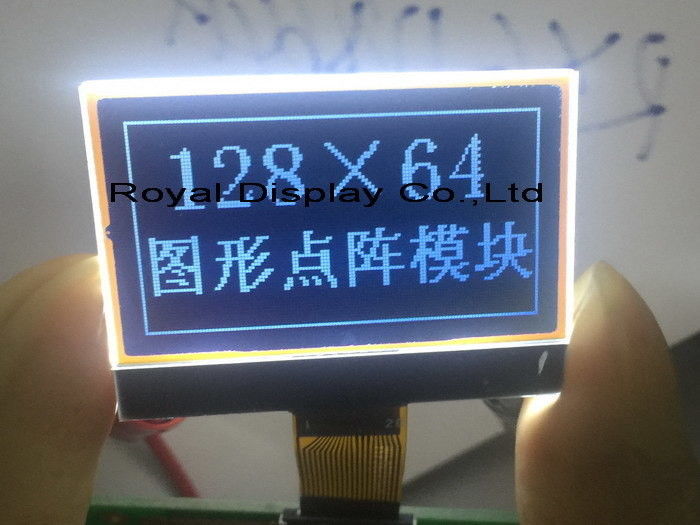

FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight

FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight
FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight

Large Image :  FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYG12864M
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128X64 Outline (mm): 41*35
Drive IC: St7565r Backlight Color: White
Backlight Current (Typ): 45mA Connection: FPC-Soldering
Power Supply: 3V Interface: Parallel
Sunlight Readable: Yes View Angle Range: 12 O' Clock
Appearance: Black On White Operating Temp.: -20º C~70ºC
Storage Temp.: -30º C~80ºC
High Light:

Graphic Positive Mono LCD Module

,

128X64 Cog Mono LCD Module

,

FSTN Monochrome Lcd Display

COG 128*64 Display Graphic Type FSTN Positive Monochrome LCD



Product Description
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG12864M
Dot Format 128x64
Outline (mm) 41*35
Viewing Area(mm) 12:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 12 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7565R
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC



RYG12864M is 1.4"128x64 serial graphic lcd display module,st7565r controller,3V driving voltage,stn blue lcd,white led backlight,wide operating temp.




Our Service Advantages



1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.





Product Process



FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight 0



FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight 1



FSTN Standard LCD Module COG 128X64 Cog Graphic Positive Mono LCD Display With White Blacklight 2









The professional manufacturer of LCD, LCD module, and LED backlight
