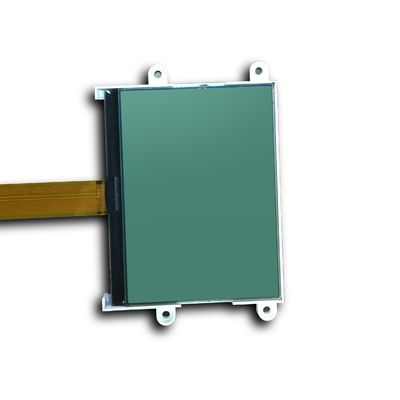

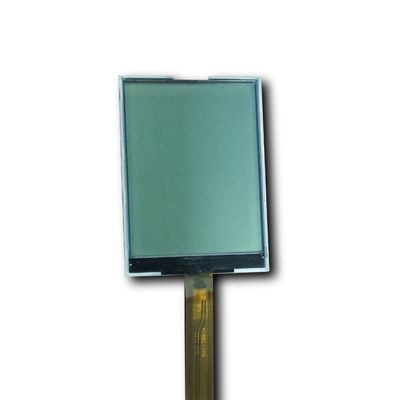

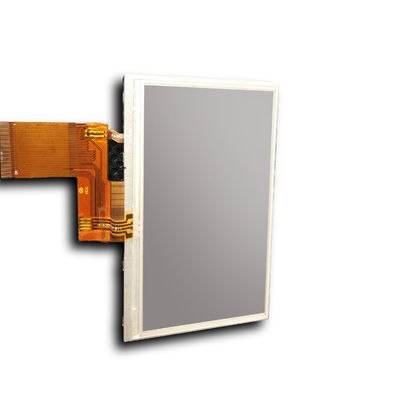

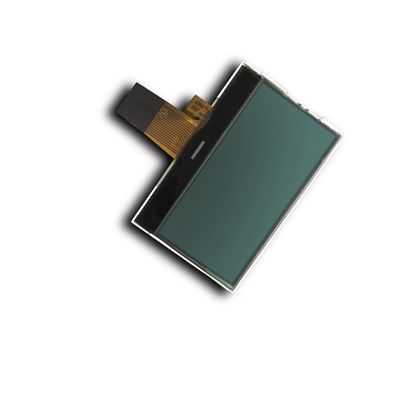

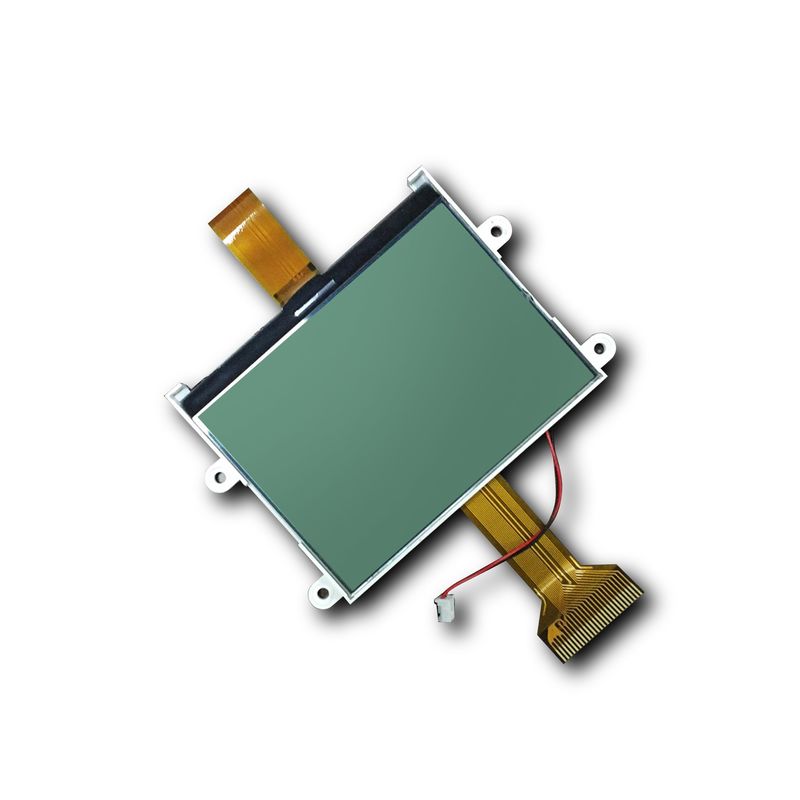

COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module

COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module
COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module

Large Image :  COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY240128COB
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 240X128 Outline (mm): 78*47
Controller: Uci6963 Backlight Color: White
IC Package: COB Connection: FPC-Soldering
Display Type: FSTN Power Supply: 3.3V
Interface: Parallel Sunlight Readable: Yes
View Angle Range: 6 O' Clock Connector: FFC-Connector
High Light:

Stn Graphic LCD Matrix Display

,

COB LCD Matrix Display

,

240X128 DOT Lcd Monitor Module

COB Structure STN Graphic LCD 240x126 Dot Matrix LCD Display

PRODUCT DESCRIPTION
1. 240x128dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 240x128dots Graphic LCD Module
Model No. RY240126COB
Dot Format 240x128
Outline (mm) 78*47
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC UCi6963
Power supply 3V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC







Applications



Our products can be widely used in telecommunication devices, consumer products, telecommunication devices, technical equipment, office automation, home appliances, automobile, it products, medical equipment and other fields.



COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module 0



COB Stn Graphic LCD Matrix Display 240X128 DOT Lcd Monitor Module 1
