Product Details:
Payment & Shipping Terms:
|
| Outline (mm): | 31*26 | Viewing Area(mm): | 6:00 |
|---|---|---|---|
| Viewing Angle: | 6 O' Clock | Backlight: | Edge White Or Green |
| Driver IC: | Zebra | Power Supply: | 3V |
| Interface: | Parallel | Storage Temp.: | -30°C~+80°C |
| Operating Temp.: | -20°C~+70°C | ||
| High Light: | IR Thermometer LCD Display Module,STN Positive LCD Display Module,Zebra Connector Graphic Lcd Display |
||

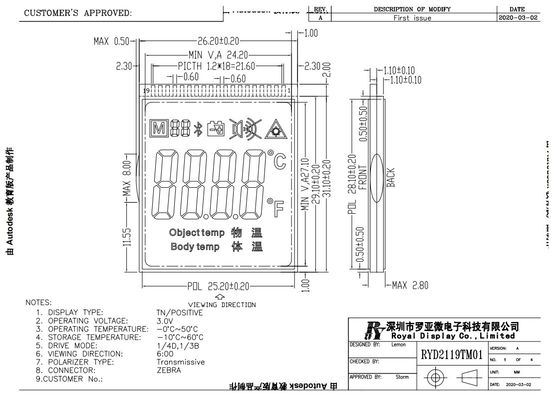

| Item | Description |

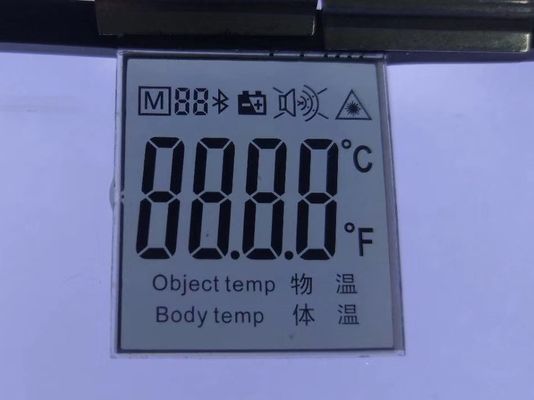

| Model No. | RYD2119TM-01 |
| Outline (mm) | 31*26 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN, Positive, Transmissive |
| Backlight | Edge White or Green |
| Connector | Zebra |
| Power supply | 3V |
| Operating Temp | -0º C~50ºC |
| Storage Temp | -10º C~60ºC |
OUR SERVICE ADVANTAGES
High Quality: BOE original products and our own products all compliance with multiple inspection standards
Professional R&D: Employed engineers with over 10 years experiences in display industry.
Factory Area: Have our own factory with strong producion capacity for regular and customized products
Stock For Sale: Good support for sampling and trial production
Support Customization: Available to do customized required products
LED professional manufacturer ROYAL DISPLAY with over 10 years experience in led field,
we do believe we can become your reliable supplier!
Segment LCDs, also called static displays or glass-only displays, are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. A static display is a segment display with one pin for every one segment.
These displays are still one of the most popular technologies in use and the majority of them are custom. Many people think the process of designing a custom segment liquid crystal display is complicated and too complex to be understood except for a few experienced people. But after designing custom LCDs for over 14 years, it can be said that just about anyone can select the best options for their product.
In other words, you don’t have to be an engineer, or have a PHD from MIT to design a custom LCD for your application. So instead of offering a list of technical terms and equations, these are the different options available.
