Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 160x160 | Outline (mm): | 41*35 |
|---|---|---|---|
| Controller: | UC1698 | Backlight Color: | White Or Amber LED Backlight |
| IC Package: | COB | Connection: | FPC-Soldering |
| Operating Temp.: | -20°C~+70°C | Storage Temp.: | -30°C~+80°C |
| Display Type: | FSTN-Positive, STN-Gray | Power Supply: | 3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Connector: | FPC | Viewing Direction: | 12:00 |
| High Light: | COB Transflective LCD Module Display,160X160 Dots LCD Module Display,UC1698 Controller Lcd Monitor Module |
||
| Item | Description |

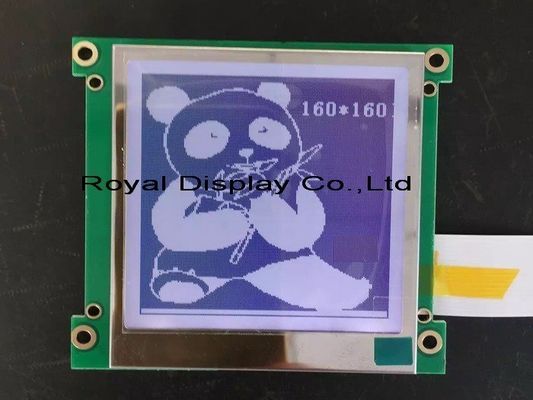

| Product Name | 160x160dots Graphic LCD Module |
| Model No. | RYD160160A |
| Dot Format | 160x160 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1698 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Applications
Our products can be widely used in telecommunication devices, consumer products, telecommunication devices, technical equipment, office automation, home appliances, automobile, it products, medical equipment and other fields.
LED professional manufacturer ROYAL DISPLAY with over 10 years experience in led field,
we do believe we can become your reliable supplier!
FAQ
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
