Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 128X64 | Outline (mm): | 41*35 |
|---|---|---|---|
| Controller: | St7565r | Backlight Color: | White Color |
| IC Package: | Cog | Connection: | FPC-Soldering |
| Display Type: | FSTN | Power Supply: | 3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Backlight Current (Typ): | 45mA | View Angle Range: | No |
| Connector: | FFC | Appearance: | Black On White |
| Viewing Direction: | 12:00 | ||
| High Light: | 128X64 Cog Custom LCD Module,St7565r Controller Custom LCD Module,3V Parallel Graphic LCD Display |
||

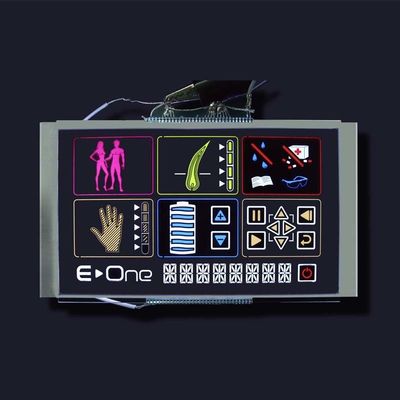

Custom LCD Module Standard Touch Screen Graphic TN LCD Display
Product Description

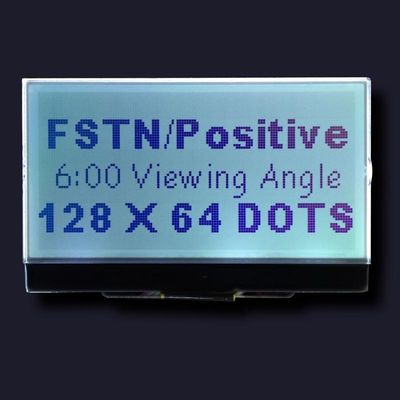

1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |

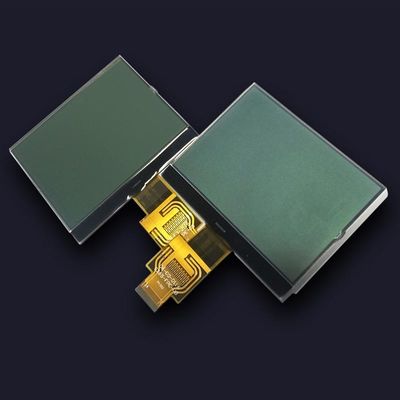

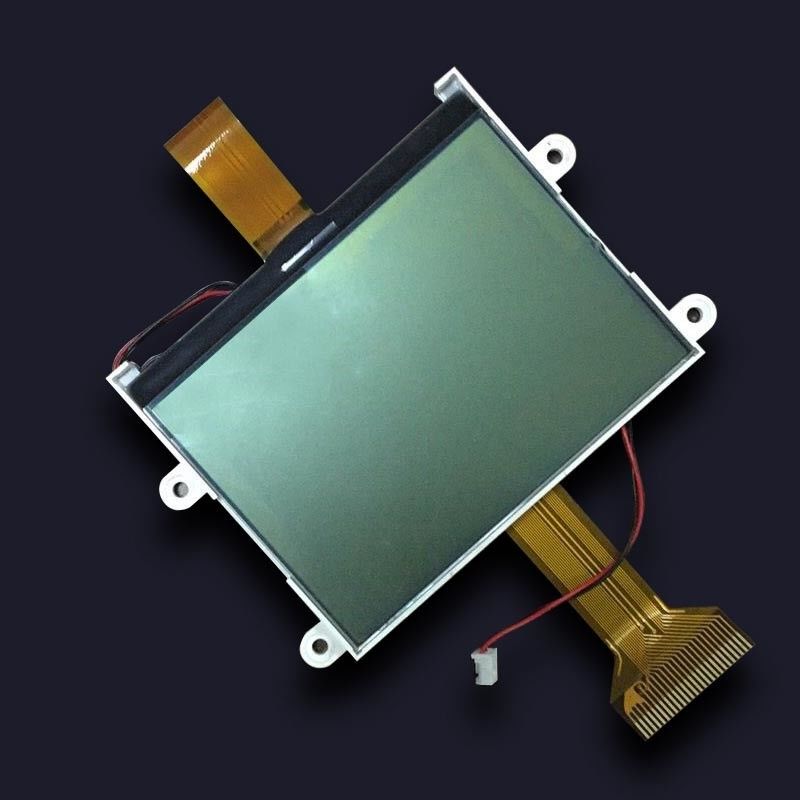

| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
PRODUCT DESCRIPTION
Description:
Tube chip color:Red,blue,green,yellow,amber,white and bi-color,RGB color etc.
Lens color available:Milky white or same as emitting color
Surface color available:Black/gray
Film type:transparent/fluorescent powder film
OEM service available
Polarity:CC&CA
Feature
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
Certifications
FAQ
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch deliverytakes 5-6 weeks
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
