Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 240*128 | Outline (mm): | 78*47 |
|---|---|---|---|
| Backlight Color: | White Color | IC Package: | COB |
| Display Type: | FSTN-LCD Grey | Power Supply: | 3V |
| Interface: | Parallel | Backlight Current (Typ): | 75mA |
| View Angle Range: | No | Connector: | FFC-Connector |
| Appearance: | Black On White | Viewing Direction: | 6:00 |
| High Light: | 240x128 Dots LCD Display Module,75mA Backlight LCD Display Module,FSTN FFC Graphic Lcd Display |
||

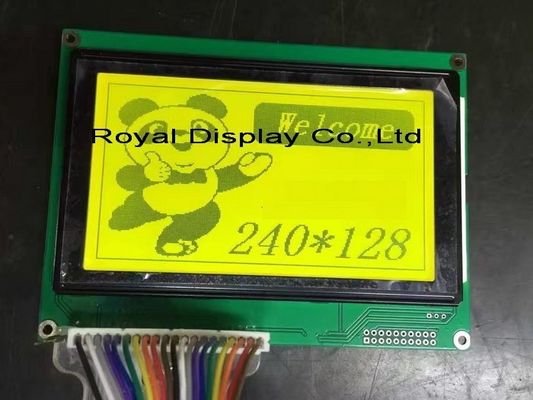

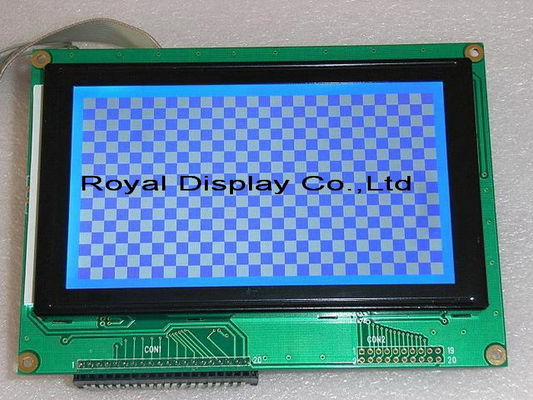

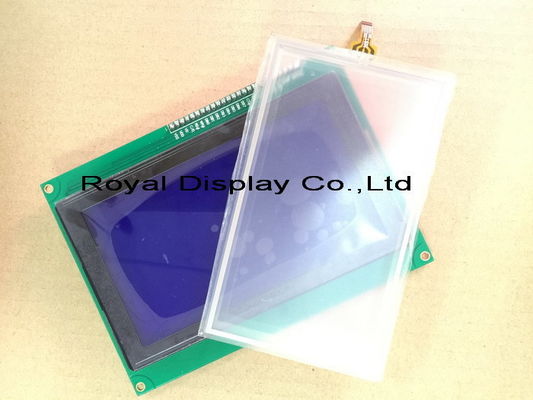

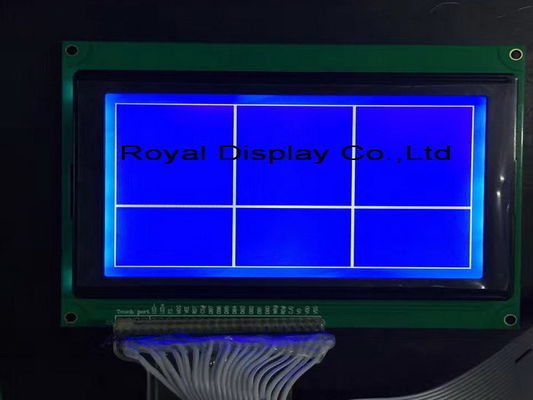

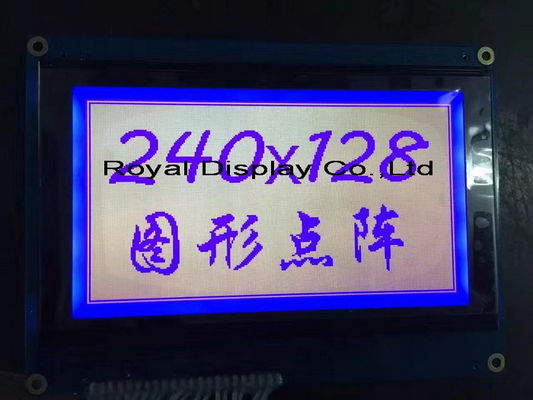

High resolution temperature controller LCD Display LCD Module
Product Description
1. 240x128dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 240x128dots Graphic LCD Module |
| Model No. | RY240128COB |
| Dot Format | 240x128 |
| Outline (mm) | 78*47 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UCi6963 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -30º C~80ºC |
Graphic LCDs
Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.
Features
1. Wide variety of off the shelf sizes and resolutions
2. Most products kept in stock and can ship same day
3. Ability to display fully changeable graphics
4. Sunlight readable
5. Low power consumption
6. Fully customizable
Favorable Comments
About Company
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years,
The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.
ROYAL DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.
